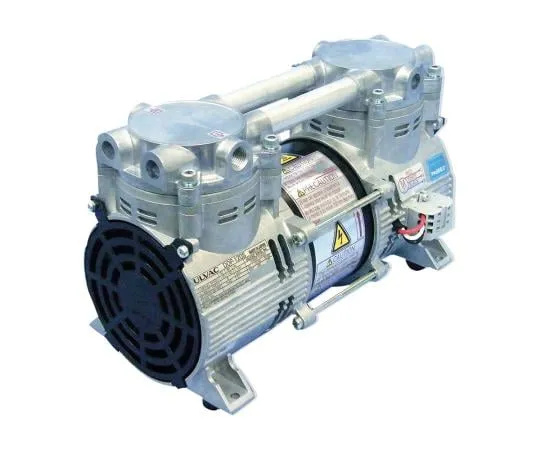

1-4146-07 Dry Vacuum Pump DOP-120S
Product Description
Product Model: 1-4146-07Product Brand: ULVAC, Inc. Feat […]
Contact Us
Product Details
Product Model: 1-4146-07
Product Brand: ULVAC, Inc.
Features
- This is a swinging piston type dry pump that ***s the vertical movement of a special resin piston ring to exhaust air.
- Since oil is not ***d, clean pressure reduction is possible.
- Large displacement and compact size.
Spec
- Model number: DOP-120S
- Effective exhaust speed (L/min): 120/140(50/60Hz)
- Achieving pressure (kPa): 8.0
- Intake pipe and exhaust pipe diameter (OD) x (ID): RC1/4
- Size: DOP-120S/139.5 x 255 x 167mm, DOP-40D, -80S/160 x 270 x 179mm, DOP-181SA/172 x 266 x 235mm
- Weight: DOP-120S/6.4kg, DOP-40D, -80S/7kg, DOP-181SA/12kg
- Power supply: DOP-120S/3φ 200 - 220V, Other/1φ 100V 50/60Hz
- Internal thermal protector
- *Inlet and exhaust pipes are not included in the package.
- *Power plug and power cord are not included.
