63-7988-08 RS PRO Universal Joint, Single, Needle Roller, Bore 20mm, 82mm Length 790-6790
Product Description
Product Model: 63-7988-08Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7988-08
Product Brand: RS PRO
Features
- Single Universal Joint with Needle Roller Bearing. Carbon steel universal joints for connecting equipment where there is a misalignment greater than 5 degrees up to an angle of 45 degrees. Fitted with needle bearings lubricated for a lifetime and requiring no maintenance, suitable for applications with speeds of up to 4000 rpm. Smooth and silent operation, suitable applications include connection of conveyers, line shafts and drive shafts.
Spec
- Quantity:1piece
- Number of Joints:Single
- Joint Type:Needle Roller
- Hub Type:Bored Hub
- Bore:20mm
- Hub Outer Diameter:42mm
- Overall Length:82mm
- Maximum Working Angle:45°
- Peak Torque:200Nm
- Material:Steel
- Maximum Speed:4000rpm
- CODE No.:790-6790
Related product recommendations
You may also be interested in the following products
63-7508-30 Hammond 1590, Die Cast Aluminium Enclosure, IP65, Shielded, 119.5 x 94 x 56.5mm 1590WC
model: 63-7508-30
brand: Hammond
64-0614-19 Wurth Elektronik 618 Series, 15 Way Right Angle Through Hole PCB D-sub Connector Plug, 2.77 mm, 2.84 mm Pitch 618015231221
model: 64-0614-19
brand: Wurth Elektronik
63-4719-81 Phoenix Contact MSTB 2.5/4-ST-5.08 PCB Terminal Block 1757035
model: 63-4719-81
brand: Phoenix Contact

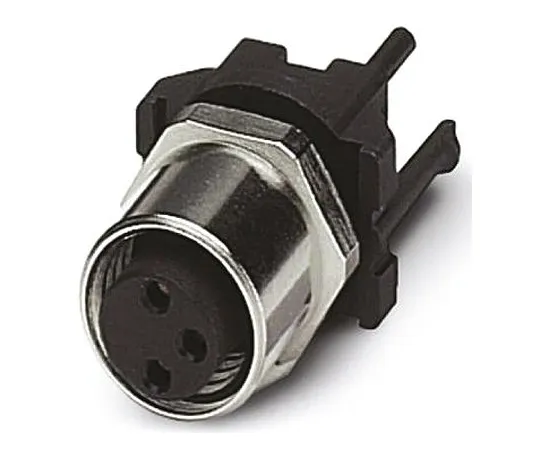

64-1298-77 Phoenix Contact SACC Series M8 Panel Mount Connector, 3 contacts Socket 1524776
