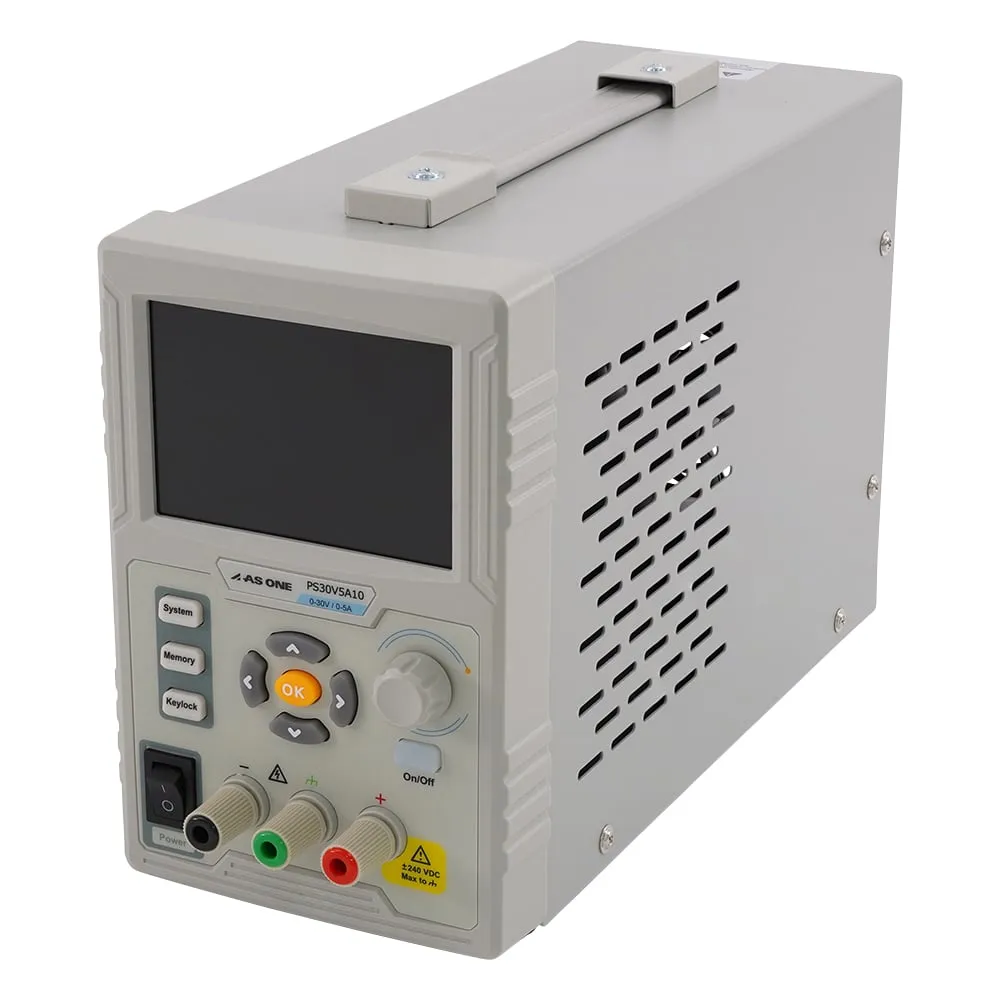

4-2690-01-24 DC Stabilized Power Supply 0~30 V/0~5 A with JCSS Calibration Certificate PS30V5A10
Product Description
Product Model: 4-2690-01-24Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-2690-01-24
Product Brand: AS ONE Corporation
Features
- 1 mV/1 mA high resolution model (10 mV/10 mA).
- 3.95 "TFT LCD display for excellent visibility.
- The voltage, power, and wattage are displayed simultaneously, and five setting values can be memorized.
- Power supply, voltage and number of watts are displayed at the same time!
Spec
- methods: switching
- Output Capacity: 150 W
- Output voltage: 0~30 V
- Resolution: 10 mV
- Power fluctuation: < 30 mV
- Load variation: < 30 mV
- Ripple and noise: < 30mVp-p, < 3mVrms
- Setting accuracy: ≤ 0.3%+10 mV
- Output current: 0~5 A
- Resolution: 1 mA
- Power fluctuation: < 0.3%+20 mA
- Load variation: < 0.3%+20 mA
- Ripple and noise: < 30mArms
- Setting accuracy: < 0.3%+20 mA
- Protection Function: Overvoltage/Overcurrent
- Power: 100 V 50/60Hz
- Size: 117 x 295 x 194 mm
- Weight: 2.3 kg
- Accessory: Output Cable
- Calibration Item: DC Voltage, DC Current 1 Point Each
