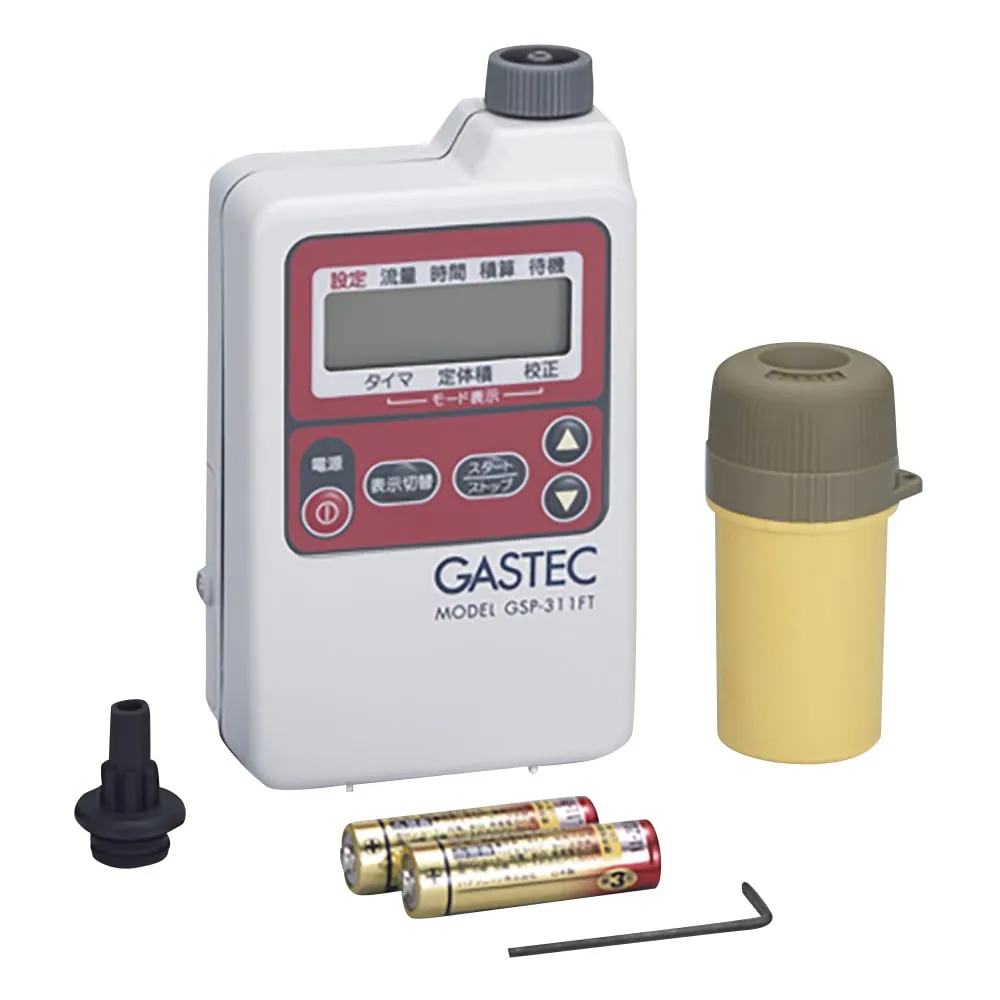

1-8141-02 Explosion-Proof Automatic Gas Sampling Device GSP-311FT
Product Description
Product Model: 1-8141-02Product Brand: GASTEC Corporati […]
Contact Us
Product Details
Product Model: 1-8141-02
Product Brand: GASTEC Corporation
Features
- Detector tubes dedicated to indoor and working environments and solid collection tubes such as activated carbon tubes can be ***d.
- We have adopted a newly developed pump capable of stable suction even under heavy loads.
- The constant flow function automatically controls flow changes due to load fluctuations.
- Automatic start function (time setting) and automatic stop at the specified time and volume.
Spec
- Model number: GSP-311FT (explosion-proof type)
- Size (mm): 80 x 40 x 140
- Weight: 300g
- Instant flow rate measurement range: 0 - 250mL/min
- Instant integration flow rate: ±5% (instant flow rate 50mL/min or more)
- Used temperature and humidity range: Temperature/0 - 40℃, Humidity/10 - 90%RH (non condensing)
- Settings mode: Timer mode (suction stop at setting time, displaying integration flow rate), Constant volume mode (suction stop at setting volume, displaying suction time)
- Display unit: Liquid crystal digital display (instant flow rate: mL/min, integrated flow rate: L)
- Function: Mass flow sensor (with temperature correction function), With default settings flow rate maintenance circuit
- Explosion-proof performance: Intrinsically safe explosion-proof structure ia2G3, certificate number T64911
- Power supply: AA alkaline dry cell x 2 pieces (included for test)
- Accessories: Detection tube adapter, tip holder
- RoHS3 (EU)2015/863 Certificates can be issued
