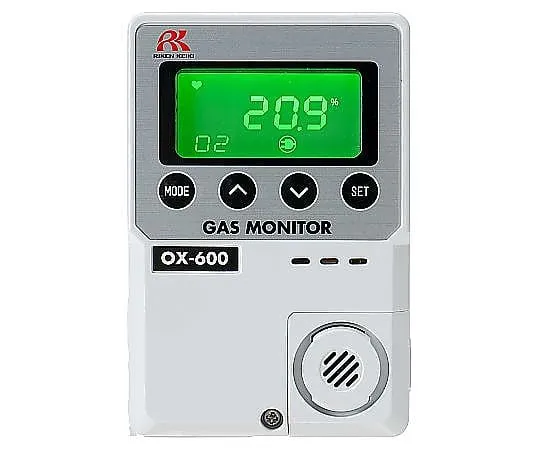

1-7996-11 Small Oxygen Monitor OX-600-00AC Integral (AC Power Supply Specification) OX-600-00/AC
Product Description
Product Model: 1-7996-11Product Brand: RIKEN KEIKI Co., […]
Contact Us
Product Details
Product Model: 1-7996-11
Product Brand: RIKEN KEIKI Co., Ltd.
Features
- Since it is equipped with a barometric pressure correction sensor, there is no change in the indicated value due to the effect of barometric pressure.
- The display color of the liquid crystal changes to three colors depending on the intensity.
- Cables can be pulled in from anywhere on the top, bottom, left, right, and back.
- You can record an alarm summary (alarm level and occurrence date and time for 10 events).
Spec
- Specification: Integral (AC power specification)
- Detection target gas: Oxygen in atmosphere
- Detection range: 0 - 25.0vol% (1digit/0.1vol%)
- Detection principle: Diaphragm galvanic battery type
- Detecting method: Diffusion type
- Alarm type: Gas alarm/alarm self-holding, canceled by reset switch, Failure Alarm/automatic return
- Alarm display: Buzzer and LEDs are flashing
- External output: 4 - 20mA or 0 - 1VDC
- Power supply: 100VAC 50/60Hz
- Power cable: 3.2m 2P type
- Function: Atmospheric pressure correction function, With self-diagnosis function (sensor abnormality , clock abnormality, system trouble)
- Size: Body/80 x 35.5 x 120mm, Remote sensor/40 x 33.5 x 95mm
- Weight: Approx 200g
