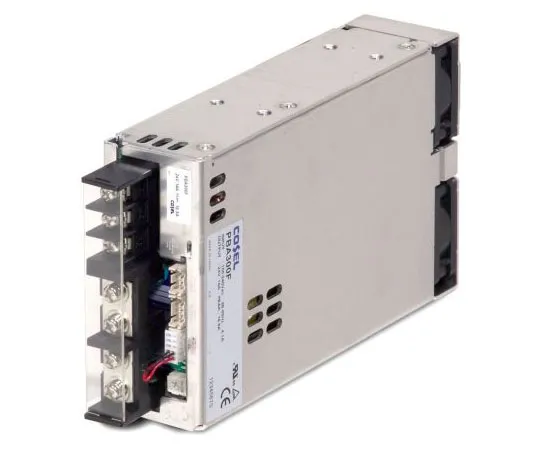

63-4139-45 Cosel 300W 1 Output Embedded Switch Mode Power Supply SMPS, 40A, 7.5V dc Enclosed PBA300F-7R5
Electronic/Electrical Parts and Controll Equipments

63-4139-45 Cosel 300W 1 Output Embedded Switch Mode Power Supply SMPS, 40A, 7.5V dc Enclosed PBA300F-7R5

model: 63-4139-45
brand: COSEL

Product Description

Product Model: 63-4139-45Product Brand: COSEL Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4139-45
Product Brand: COSEL

Features

  • (At only AC input) UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN Conducted noise: Complies with FCC Part15 class B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B (additional EMI/EMC filter required to meet Class B for PBA1500F models) Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter). UL, C-UL, EAMSL compliant, IEC61000-3-2, CE. All models include ventilated cover. Carry out the necessary testing on *** equipment with the power supply installed as per required EMC/EMI regulations. 5. PBA Series with Single 50-300W output. The PBA series of switch mode power supplies from Cosel are lightweight and incredibly compact. They are 35% to 65% smaller in volume than conventional products of the same type. With a universal input of 85 V ac to 264 V ac, the PBA series of switch mode power supplies is versatile. Features and Benefits:. Rated output wattage of 10 W to 1500 W. Overcurrent and overvoltage protection. Harmonic attenuator. Convection cooled or fan cooled dep***ing on model. PBA50F to PBA150F models have increased efficiency due to synchronous rectification technology. PBA300F to PBA1500F models have parallel operation and parallel redundancy operation. They also feature remote ON/OFF, a fan alarm, and remote sensing among other functions. Product Applications:. Suitable applications include automated machinery and semiconductor equipment.

Spec

  • Quantity:1piece
  • Output Voltage : 7.5V dc
  • Output Current : 40A
  • Power Rating : 300W
  • Number of Outputs : 1
  • Input Voltage : 120 → 350 V dc, 85 → 264 V ac
  • Mounting Type : Chassis Mount
  • Package Type : Enclosed
  • Length : 201mm
  • Width : 42mm
  • Depth : 102mm
  • Weight : 1kg
  • Efficiency : 76 %, 79 %
  • Maximum Temperature : +71°C
  • Minimum Temperature : -20°C
  • CODE No.:101-992
