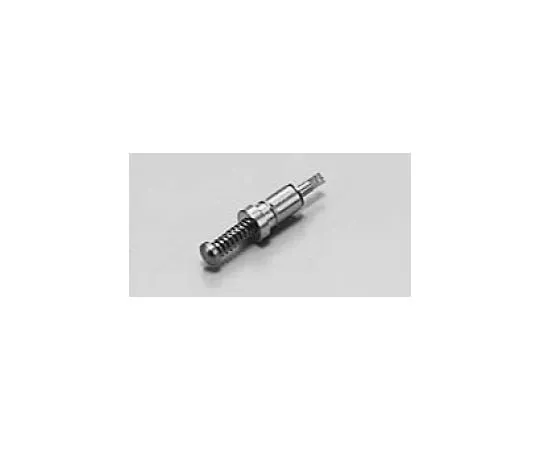

64-6183-25 Battery spring Probe VB 24 series (10 pieces) VB-10-6-BC
Product Description
Product Model: 64-6183-25Product Brand: MAC EIGHT CO., […]
Contact Us
Product Details
Product Model: 64-6183-25
Product Brand: MAC EIGHT CO., LTD
Spec
- Contents: For mounting resin
- Material: Body/Contact: Brass, Spring/E-Ring: Stainless steel
- Treatment: Body contact: Nickel base gold-plated
- Current rating: 3A
- Contact resistance: 10 m.OMEGA. or less
- Endurance: 10,000 times or more
- Working power: 90 g with 1 mm stroke
- Stroke: 1.5 mm
- Operating temperature range: -20 degrees C to + 100 degrees C
- Entries: 10
- Use for charging and discharging batteries, etc. Can handle inrush current
- RoHS compliant
- Quantity: 1 bag (10 bottles)
