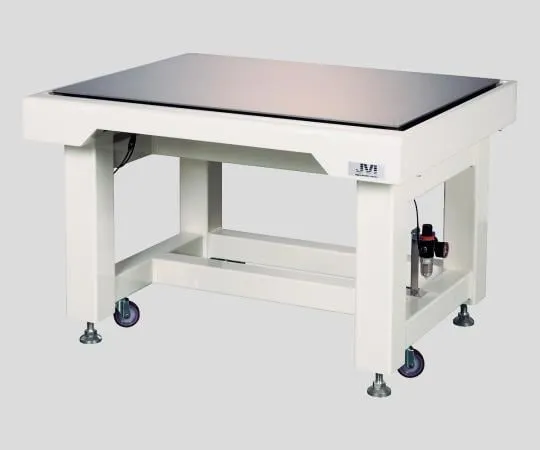

2-579-01 Three Dimensional Air Spring Type Vibration Removal Board M0806N
model:
2-579-01
category:
gasmonitors
Product Description
Product Model: 2-579-01 Features Since the upper and lo […]
Contact Us
Product Details
Product Model: 2-579-01
Features
- Since the upper and lower surfaces of the honeycomb plate are machined before formation, there is no residue of cutting oil or a notch inside.
- The vibration removal section uses omnidirectional air springs to achieve a high level of vibration removal performance.
- M4 tap processing is applied to the upper surface of the frame so that electromagnetic shield boxes, dark rooms, clean booths, etc. can be set up.
Spec
- Anti-vibration method: Omni-Directional three-dimensional air spring
- Size: Outer dimensions/876 x 720 x 720mm, Molding board/800 x 600mm
- Top of molding board: Magnetic SUS430
- Molding board inner part: Steel, honeycomb core structure
- Horizontal maintain method: Automatic set by mechanical valve
- Natural frequency: Vertical/1.2 - 1.8Hz, Horizontal/1.0 - 1.5Hz
- Weight: 125kg
- Accessories: φ6mm tube x 5m, One-touch joint (PT1/4 male screw)
- *Compressor is required. Recommended compressor: Low-noise oilless compressor YC-3F (1-5003-01)
- Model number: M0806N
