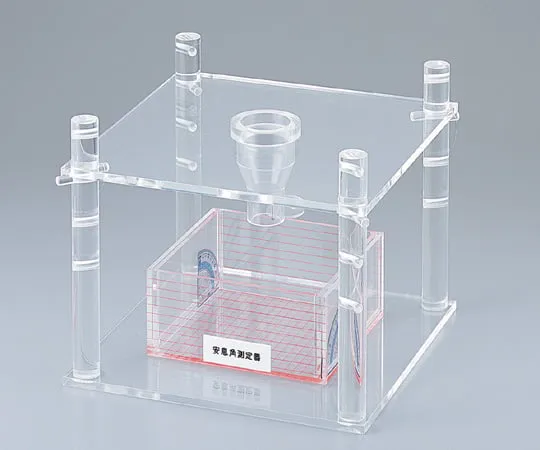

1-7643-01 Repose Angle Measurement Device ASK-01
model:
1-7643-01
category:
toner
Product Description
Product Model: 1-7643-01 Features After the powder is d […]
Contact Us
Product Details
Product Model: 1-7643-01
Features
- After the powder is dropped from above, the angle of repose of the powder deposited at the bottom is measured with a protractor.
- You can adjust the height of the powder drop.
- Suitable for non-electrically charged powders, simple measurement is possible.
Spec
- Powder hopper size: φ33 (inner diameter) x φ56 (outer diameter) x 115mm (height)
- Powder case size: 350 x 350 x 290mm
- Inside dimension of receiving container: 190 x 190 x 95mm
- Material: PMMA (acrylic)
- Weight (kg): 4.8
- Set content: Powder hopper, Powder case, Receiving container, Protractor x 2 pieces
- Model number: ASK-01
