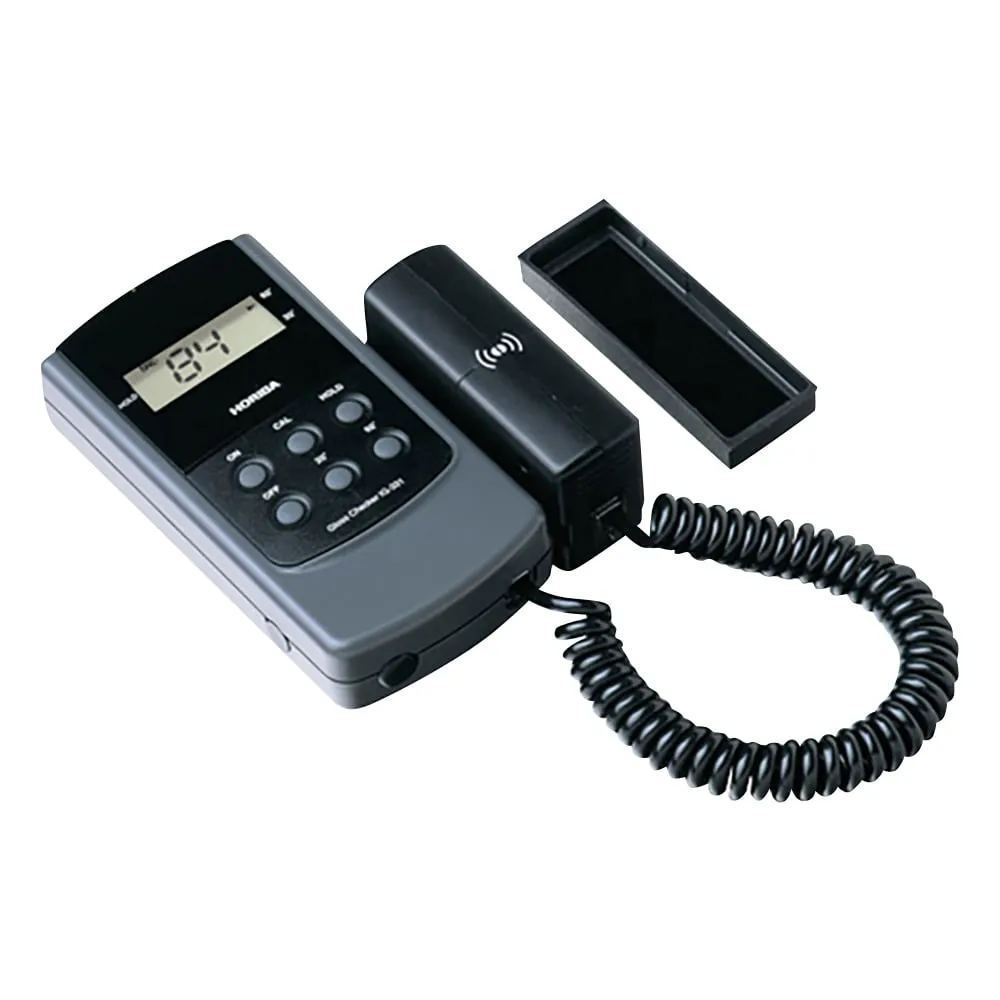

1-7345-01 Gloss Checker (Glossmeter) IG-331
model:
1-7345-01
category:
toner
Product Description
Product Model: 1-7345-01 Features Simply press the cali […]
Contact Us
Product Details
Product Model: 1-7345-01
Features
- Simply press the calibration key to automatically perform zero span calibration.
- The measurement angle is switched between 60° and 20°.
Spec
- Model number: IG-331
- Measurement range (GU): 0 - 100
- Display range (GU): 0 - 199
- Resolution (GU): 1
- Optical system: 60° measurement: Incident angle 60 degrees, light-receiving angle 60 degrees, 20° measurement: Incident angle 20 degrees, light-receiving angle 20°
- Measurement area: 60° measurement: 3 x 6mm ellipse 20° measurement: Ellipse of 3 x 4mm
- Light source: LED (wavelength of 890nm)
- Light-receiving part: SPD (Silicone photo diodes)
- Reproducibility: ±5% F.S. ±1digit within
- Power supply: AA dry cell (R6P) x 4 volumes (test included)
- Time allowed for continuous ***: 50 hours or more
- Size: Body: 140 x 75 x 34mm optical system: 88 x 30 x 45mm
- Weight: Approximately 350g (cell with integrated)
- Additional function: Automatic calibration, Auto power OFF, Display hold, Over range display battery remaining amount display
