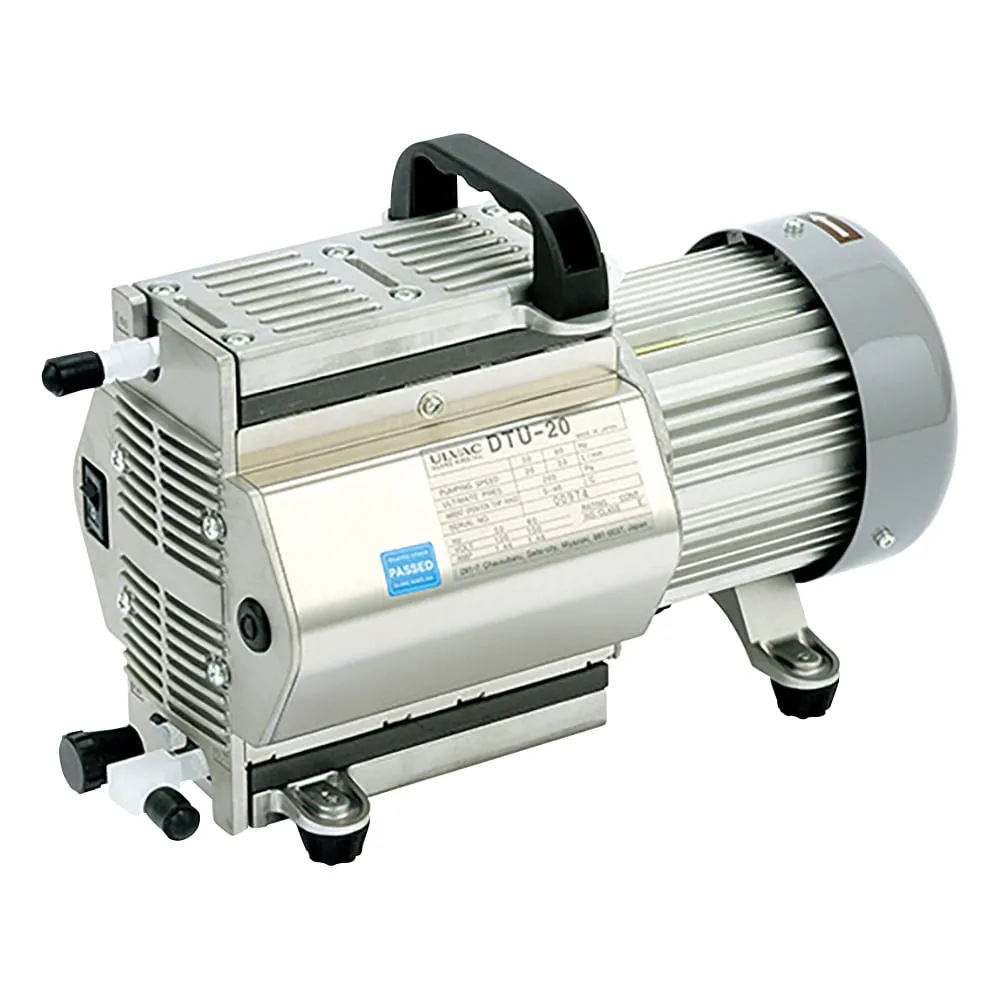

1-9198-01 Dry Vacuum Pump (Chemical Type) 200kPa DTU-20
Product Description
Product Model: 1-9198-01Product Brand: ULVAC, Inc. Feat […]
Contact Us
Product Details
Product Model: 1-9198-01
Product Brand: ULVAC, Inc.
Features
- Built-in thermal protector.
- Chemical type ***s PTFE (tetrafluoroethylene) and PP (polypropylene) for the contact gas part.
Spec
- Model number: DTU-20
- Exhaust speed (L/min): 20/23(50/60Hz)
- Achieving pressure (Pa): 200
- Power supply: 100VAC 50/60Hz
- Power consumption: 80W
- Intake, exhaust port diameter: O.Dφ10 x I.Dφ6mm (Rc1/8)
- Size (mm): 161 x 327 x 217
- Weight (kg): 7.5
- RoHS3 (EU)2015/863 Certificates can be issued
Related product recommendations
You may also be interested in the following products
laboratoryinstruments
65-6836-88 Dewar Cooler (Screw Type Nozzle) 45 x 200 15/25 1860-01-1
model: 65-6836-88
brand: VIDTEC
laboratoryinstruments

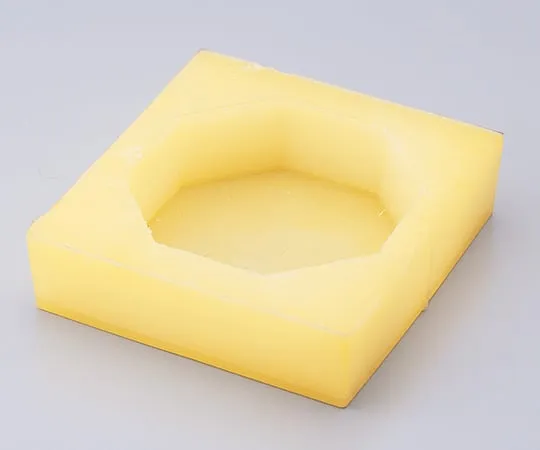

1-6020-11 ［Discontinued］Agate Magnetic Mortar Base MEG-5G
