63-7795-38 Druck ATEX Gauge for Fluid Pressure Sensor, 6bar Max Pressure Reading , 7 → 28 V, G1/4, IP65 X5072-TB-A1-CA-H1-PA 6.0 bar G
Product Description
Product Model: 63-7795-38Product Brand: Druck Features […]
Contact Us
Product Details
Product Model: 63-7795-38
Product Brand: Druck
Features
- UNIK 5000 Series Pressure Sensors. The UNIK 5000 series is a high performance configurable solution to pressure measurement. The pressure sensors *** silicon technology and analogue circuitry which enables high performance for stability, low power and frequency response. Frequency response to 5 kHz High over pressure capability
Spec
- Quantity:1piece
- Pressure Reading Type : Gauge
- Maximum Pressure Reading : 6bar
- Accuracy : ±0.2 %
- Output Type : Analogue
- Media Measured : Fluid
- Process Connection : G1/4
- Analogue Output : 4 → 20 mA
- Response Time : 10 ms
- Maximum Current : 20 mA
- Supply Voltage : 7 → 28 V
- Housing Material : Stainless Steel
- IP Rating : IP65
- Hazardous Area Certification : ATEX
- CODE No.:746-3467
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4558-69 RS PRO Polystyrene Capacitor 6.8nF 160V dc ±2.5% Tolerance Through Hole 9.5mm diameter 113-386
model: 63-4558-69
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-7674-69 ASSMANN WSW A-HDS Series Cable Mount, 26 Pin D-sub Connector Plug, Shell Size A High Density A-HDS 26 LL/Z
model: 63-7674-69
brand: ASSMANN WSW
Electronic/Electrical Parts and Controll Equipments
63-5001-54 TE Connectivity Universal MATE-N-LOK Male Crimp Terminal Contact 14AWG 350552-3 350552-3
model: 63-5001-54
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

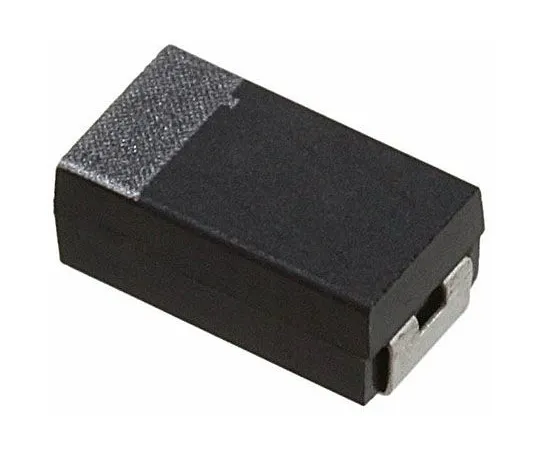

63-9678-86 AVX Tantalum Capacitor 22μF 35V dc Electrolytic Solid F93 Series F931V226MNC
