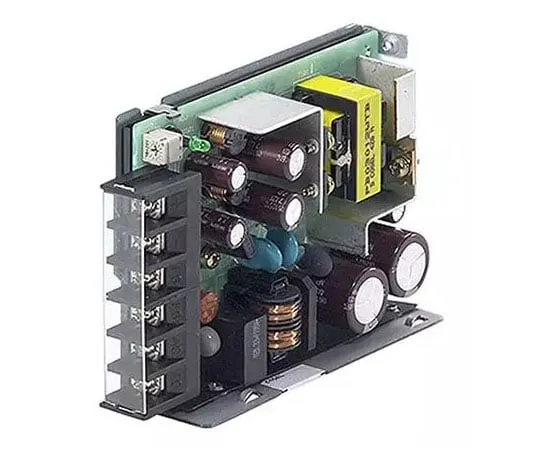

63-4139-02 Cosel 30W Dual Output Embedded Switch Mode Power Supply SMPS, 1 A, 1.4 A, ±15V dc Open Frame PBW30F-15
Product Description
Product Model: 63-4139-02Product Brand: COSEL Features […]
Contact Us
Product Details
Product Model: 63-4139-02
Product Brand: COSEL
Features
- (At only AC input) UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN Conducted noise complies with FCC Part15 class B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B Harmonic attenuator complies with IEC61000-3-2 (Not built-in to active filte. Carry out the necessary testing on *** equipment with the power supply installed as per required EMC/EMI regulations. 5. Cosel PBW Series Switch Mode Power Supplies. The PBW series of switch mode power supplies (SMPS) from Cosel are a compact, lightweight solution. PBW switching power supplies feature a universal rated input of 85 V ac to 264 V ac making them a versatile solution. Features and Benefits:. Harmonic attenuator. Built-in overcurrent protection. PFC function. Parallel operation and parallel redundancy. Convection cooled
Spec
- Quantity：1piece
- Output Voltage : ±15V dc
- Output Current : 1 A, 1.4 A
- Power Rating : 30W
- Number of Outputs : 2
- Input Voltage : 110 → 370 V dc, 85 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Open Frame
- Length : 119.5mm
- Width : 34.5mm
- Depth : 78mm
- Weight : 270g
- Efficiency : 78 %, 79 %
- Maximum Temperature : +71°C
- Minimum Temperature : -10°C
- CODE No.:101-106
