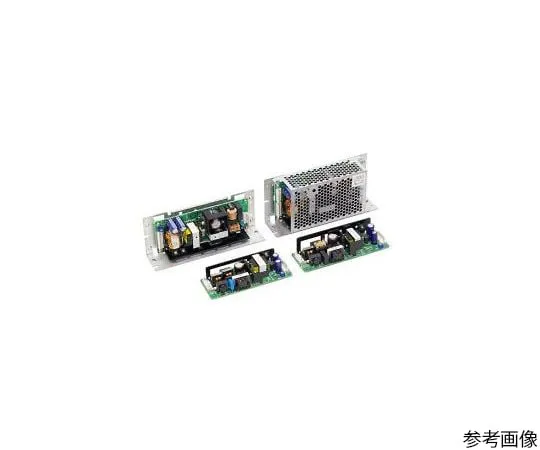

64-5675-64 Single Board AC-DC Switching with Power Cover 75 W 48 V ZWS75BAF-48A
Product Description
Product Model: 64-5675-64Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5675-64
Product Brand: TDK-Lambda Corporation
Features
- Integrated Active Filter Circuit, Harmonic Current Regulation
- Higher Efficiency and Less Standby Power
- Smaller Conventional Product Ratio by 30% and Lighter by 20%
- Achieves 50°C 100% in consideration of production applications
Spec
- (Schematic specifications)
- Input voltage range 85 ~ 265 VAC (47 ~ 63 Hz), 120 ~ 370 VDC continuous input
- Cooling method Natural air cooling
- Operating Ambient Temperature -10 C to + 40 C: 100%, + 50 C: 75%, + 60 C: 50%
- Power input to output: 3 kVAC, input to FG: 2 kVAC,
- Output-FG: 500 VAC, 1 minute each
- Certification for safety standards UL 60950 -1, CSA 60950 -1, EN 60950 -1, EN 50178 (OV?),
- Electrical Appliance and Material Safety Law 100 VAC Compliance
- Noise Terminal Voltage EN 55011 -B, EN 55022 -B, VCCI-B, FCC-B Compliance
- Noise Field Strength EN 55011 -B, EN 55022 -B, VCCI-B, FCC-B Compliance
- Function Overvoltage Protection, Overcurrent Protection
- RoHS compliant
