Spec

• Key Features
• Built-in active filter circuit, compatible with harmonic current regulation
• High efficiency and low standby power
• More than 30% smaller and 20% lighter than conventional models
• Achieved a temperature of 50 degrees Celsius of 100% considering industrial applications
• Lots of options with cover, L-sheet metal, double-sided substrate coating, volumeless, remote ON/OFF control
• Key Specifications
• Output Power 76.8 W
• Input voltage range 85 ~ 265 VAC (47 ~ 63 Hz) or 120 ~ 370 VDC
• Output voltage DC 48 V
• Output Current 1.6 A
• Efficiency (typ) 0.85/0.88 (100/200 VAC)
• Operating temperature range: -10 to + 70 degrees Celsius (-10 to + 50 C: 100%, + 60 C: 75%, + 70 C: 50%)
• Dimensions 50 x 33 x 150 mm

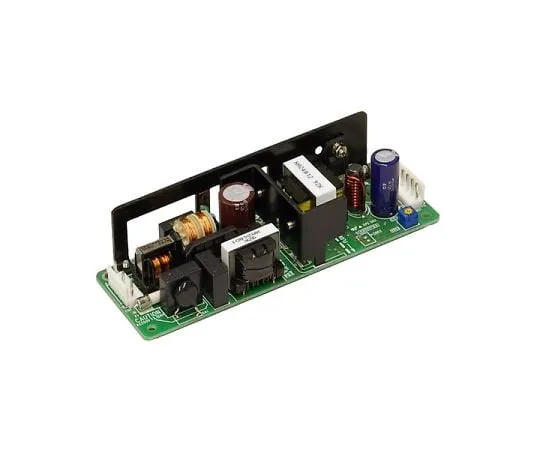

• Remarks No cover
• RoHS compliant
