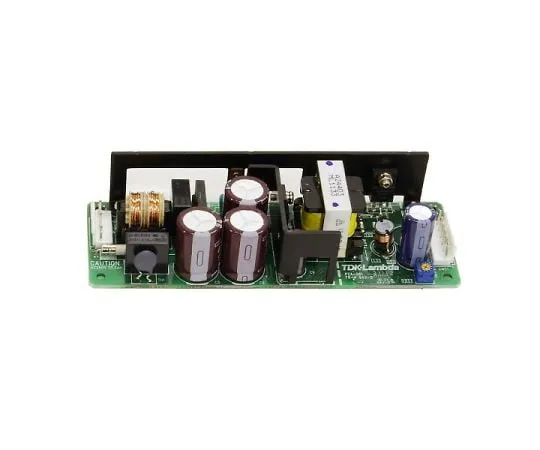

64-5675-54 Substrate Power Supply ZWS-B Series 75.6 W 12 V ZWS75B-12
Product Description
Product Model: 64-5675-54Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5675-54
Product Brand: TDK-Lambda Corporation
Spec
- Key Features
- Simple circuit configuration without harmonic current suppression circuit
- Small, lightweight and highly efficient
- Operating ambient temperature of 50 deg. C and use of 104% load factor (standard installation)
- A wide range of options (With Cover, With L Sheet Metal, Double-sided Board Coating, Volumeless)
- Key Specifications
- Output Power 75.6 W
- Input voltage range 85 ~ 265 VAC or 120 ~ 370 VDC
- Output voltage DC 12 V
- Output Current 6.3 A
- Efficiency (typ) 0.84/0.86 (100/200 VAC)
- Operating temperature range: -10 to + 70 degrees Celsius (-10 to + 50 C: 100%, + 60 C: 80%, + 70 C: 60%)
- Dimensions 50 x 33 x 150 mm
- Remarks No cover
- RoHS compliant
