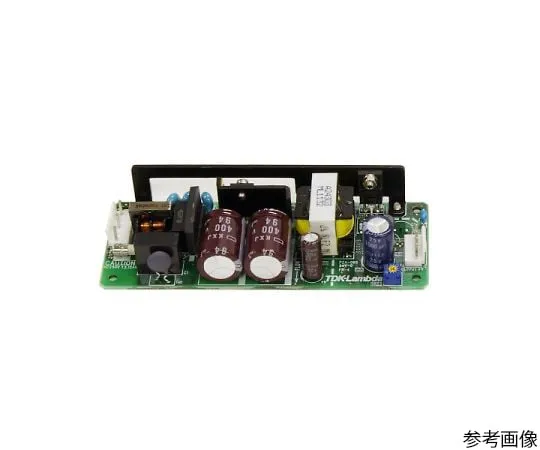

64-5675-45 Substrate Power Supply ZWS-B Series 50 W 5 V ZWS50B-5
Product Description
Product Model: 64-5675-45Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5675-45
Product Brand: TDK-Lambda Corporation
Spec
- Key Features
- Simple circuit configuration without harmonic current suppression circuit
- Small, lightweight and highly efficient
- Ability to *** 102% load factor at 50 degrees operating ambient temperature (standard installation)
- A wide range of options (With Cover, With L Sheet Metal, Double-sided Board Coating, Volumeless)
- Key Specifications
- Output Power 50 W
- Input voltage range 85 ~ 265 VAC or 120 ~ 370 VDC
- Output voltage DC 5 V
- Output Current 10 A
- Efficiency (typ) 0.83/0.86 (100/200 VAC)
- Operating temperature range: -10 to + 70 degrees Celsius (-10 to + 50 C: 100%, + 60 C: 75%, + 70 C: 50%)
- Dimensions 50 x 26 x 132 mm
- Remarks No cover
- RoHS compliant
