63-7782-92 ifm electronic Gas, Liquid Relative Pressure Switch, 2NO 0 → 400bar, 9.6 → 32 V dc, G1/4 process PK7520
model:
63-7782-92
brand:
ifm electronic
Product Description
Product Model: 63-7782-92Product Brand: ifm electronic […]
Contact Us
Product Details
Product Model: 63-7782-92
Product Brand: ifm electronic
Features
- UL, CE. Dual Output Pressure Switch. Efector 500 range of Pressure Sensors. Electronic pressure monitor PK75 Quick disconnect Process connection G1/4 A / M25 I 2 switching outputs Electrical design: DC PNP Output: 2 normally open Switching status 2xLED (yellow) Non latching short circuit protection Overload and reverse polarity protection Operating temperature: -25 → 80 °C IP rating: IP67
Spec
- Quantity:1piece
- Pressure Range : 0 → 400bar
- Pressure Reading Type : Relative
- Media Measured : Gas, Liquid
- Output Type : 2NO
- Supply Voltage : 9.6 → 32 V dc
- Minimum Pressure Reading : 0bar
- Maximum Pressure Reading : 400bar
- Electrical Connection : M12 Connector
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +80°C
- Accuracy : <±2.5 %
- Maximum Current : 500 mA
- Housing Material : FPM, PBT, PC, Stainless Steel
- CODE No.:739-6715
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4626-36 RS PRO 9 Way Panel Mount D-sub Connector Plug 452-940
model: 63-4626-36
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

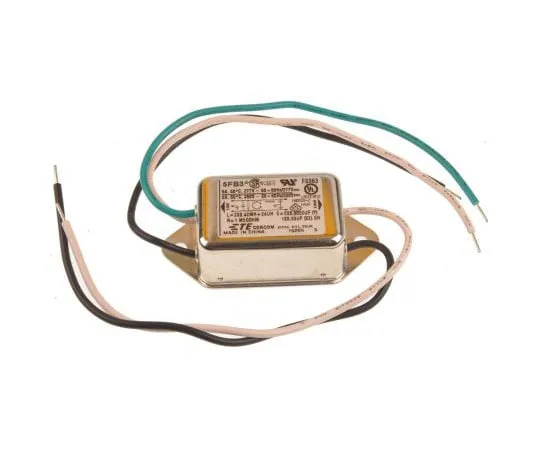

63-8057-53 TE Connectivity Corcom FB Series 5A 277 V ac/dc 50 Hz, 60 Hz Panel Mount RFI Filter, with Wire Lead Terminals, Single 9-1609095-1
