61-4933-50 ［Discontinued］Repair System 701-1
Product Description
Product Model: 61-4933-50Product Brand: HAKKO Features […]
Contact Us
Product Details
Product Model: 61-4933-50
Product Brand: HAKKO
Features
- Plug Shape: 2-Pole Grounded Plug
- Repair system capable of soldering and removing solder in one station
- 14 types of trowel parts can be combined
- Supports N2 systems.
- *The weight of the station section and the soldering trowel section excludes the cord.
- *The total length of the soldering trowel section excludes cords.
- *The outer dimensions and weight of the solder removal trowel are exclusive of the cord hose.
Spec
- < Station >
- Output: 24 VAC
- External Dimensions: 190 (W) x 130 (H) x 250 (D) mm
- Weight: 5 kg
- Soldering Iron Side, Setting Temperature Range: 200~480°C
- Soldering iron side/Ripple temperature: ±1°C without load
- Solder removal trowel side, set temperature range: 380~480°C
- Solder removal trowel side/Vacuum generating method: Double cylinder diaphragm pump
- Solder removal trowel side, vacuum pressure reached: 80 kPa (600mmHg)
- Solder removal trowel side/suction flow rate: 15 L/min.
- < Soldering trowel section >
- Power consumption: 50 W (24 V)
- Rail to ground resistance: <2
- Set Contents/Accessories: Body (with Power Cord)/Cort 907 (C1144)/Ceramic Paper Filter S2 (A1009)/Ceramic Paper Filter L4 (A1033)/Cleaning Pin (For Nozzle φ1.0 mm: B1087)/Wrench (B3048)/Cort Base (With Cleaning Sponge: C1142)/Cleaning Pin (For Heater: B1215)/Cleaning Drill (For Nozzle φ1.0 mm: B1303)/Cort Base (With Cleaning Sponge: 631-06)/Filter Pipe (B2073)/Spring Filter 3 (A1010)/Silicone Grille
- Power Supply (V): 100 VAC 50/60Hz
- Power consumption (W): 150 W
- Accessory Tip: Type B (No. 900M-T-B)
Related product recommendations
You may also be interested in the following products
dissectiontoolsandsupplies

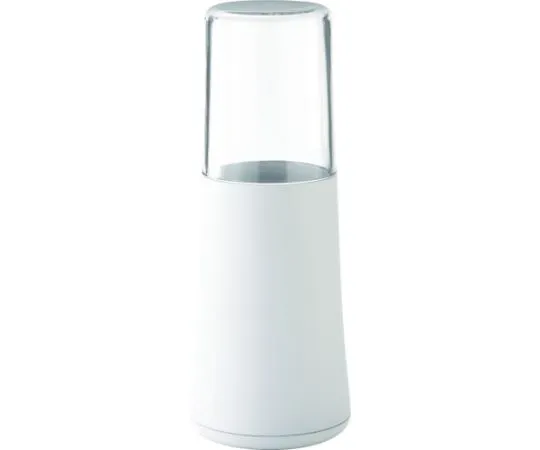

61-3224-62 ［Discontinued］Stavia Cutlery Stand White GGAR027
