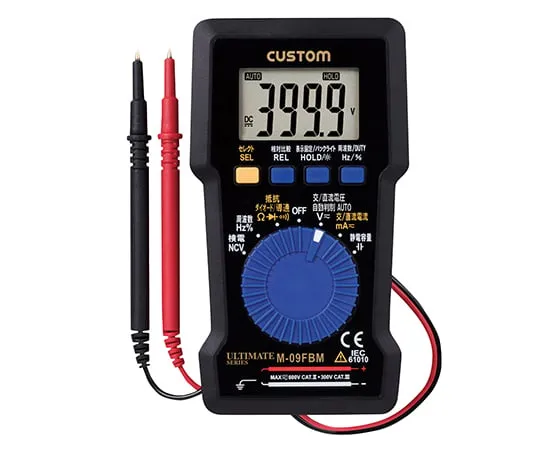

1-6846-21-24 Digital Tester with JCSS Calibration Certificate M-09FBM
Product Description
Product Model: 1-6846-21-24Product Brand: CUSTOM corpor […]
Contact Us
Product Details
Product Model: 1-6846-21-24
Product Brand: CUSTOM corporation
Features
- With data hold and relative function.
- Since the magnet is built in the back of the body, it can be attached to the metal surface.
- The test lead ***s gold-plated test lead and can be wrapped around the body for storage.
Spec
- Size (mm): 70 x 12.5 x 127
- Weight (g): 110
- Measurement functions: voltage (DC/AC), current (DC/AC), resistance, frequency, capacitance
- Function: continuity check (buzzer/LED), diode check
- Measurement Range: Voltage (DC/AC)/0~600 V (4 Ranges), Current (DC/AC)/0~400 mA, Resistance/0~40 MΩ, Frequency/0~100 kHz, Capacitance/0~100 μF
- Compliance standard: IEC61010-1 compliant CATII600V, CATIII300V
- Power Supply: CR2032 (3 V) Lithium Battery x 1 (Included for Testing)
- Calibration Items: DC Voltage, DC Current, Resistance, AC Voltage (50 Hz), AC Current (50 Hz)
