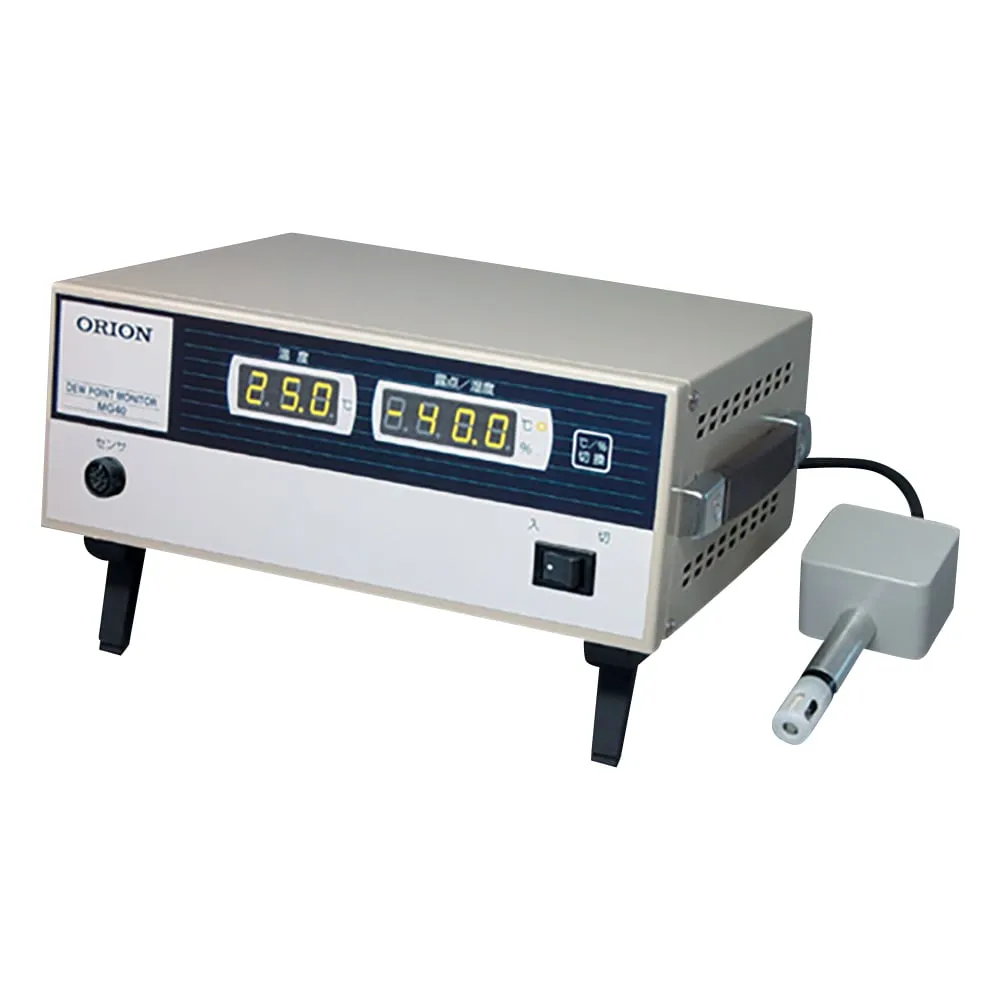

1-6778-01 Dew-Point Monitor MG40 MG-40
Product Description
Product Model: 1-6778-01Product Brand: ORION ELECTRIC C […]
Contact Us
Product Details
Product Model: 1-6778-01
Product Brand: ORION ELECTRIC Co., LTD.
Features
- Dew point, humidity and temperature can be measured.
- External output of each measurement is possible.
Spec
- Model number: MG-40
- Measurement dew point range: -60 to +40℃
- Humidity expected range: 0.1 - 99.9%RH
- Temperature measuring range: -20 to +80℃
- External output: 0 - 5V
- Power supply: 100VAC 50/60Hz
- Power cord length: 2m
- Humidity sensor cable length: 1.5m
- Main unit size: 260 x 220 x 80mm
- Probe size: 50 x 148 x 35mm
- Weight: Approx 2.7kg
