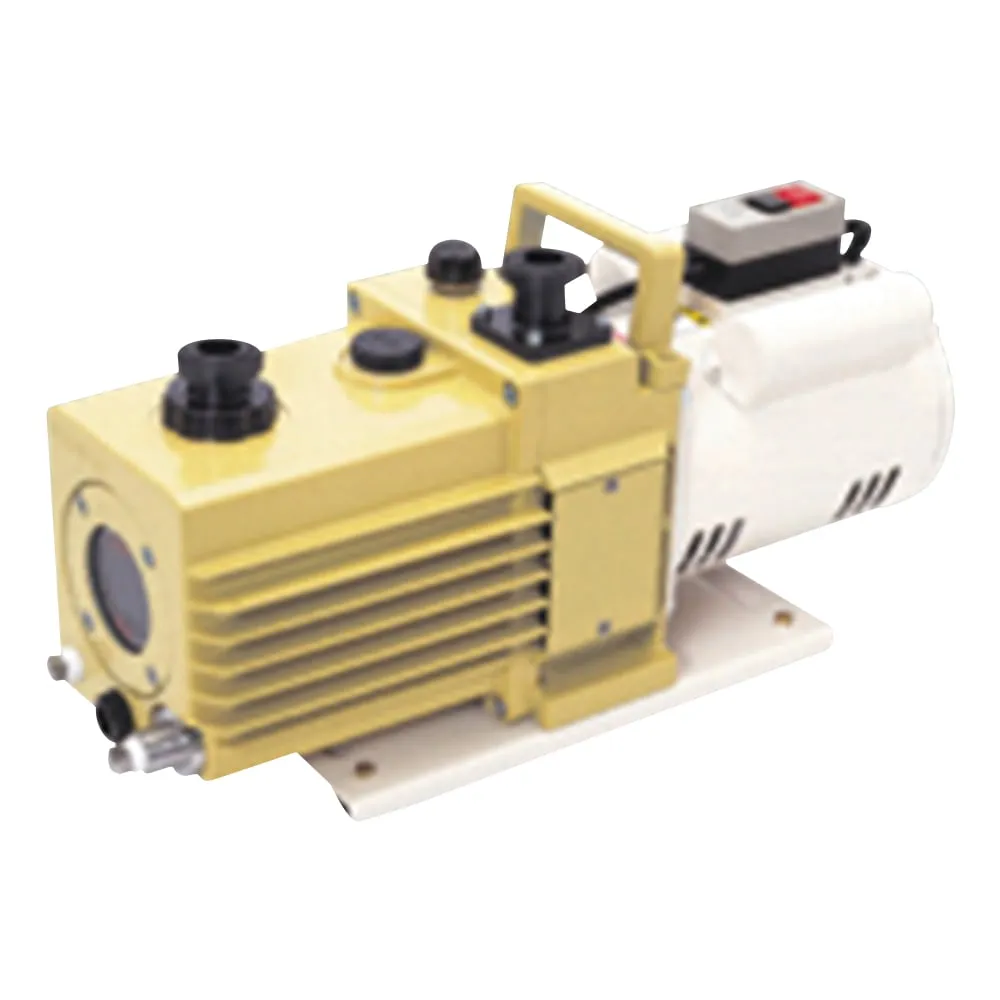

1-671-20 Oil-Sealed Rotary Vacuum Pump 170 x 509.5 x 241.1mm GCD-201X
Product Description
Product Model: 1-671-20Product Brand: ULVAC, Inc. Featu […]
Contact Us
Product Details
Product Model: 1-671-20
Product Brand: ULVAC, Inc.
Features
- This is a corrosion-resistant vacuum pump with a special surface treatment applied to the GLD series. It can withstand acid and alkali solvents, as well as highly corrosive carbon tetrachloride and hydrochloric acid.
- Byton is ***d for the oil seal and O-ring.
- Oil filtration can also be connected.
Spec
- Model number: GCD-201X
- Exhaust speed (effective) (L/min): 200/240 (50/60Hz)
- Size (mm): 170 x 509.5 x 241.1
- Achieving pressure (Pa): Gas ballast closed 0.67, Gas ballast open 6.7
- Power (V): 3 phase 200
- Oil ***d: SO-M (included)
- Oil volume: 1100mL
- Weight: 26.6kg
- Corrosion resistant direct connection type
- *Rubber tube adapter and clamp are not included in the package.
