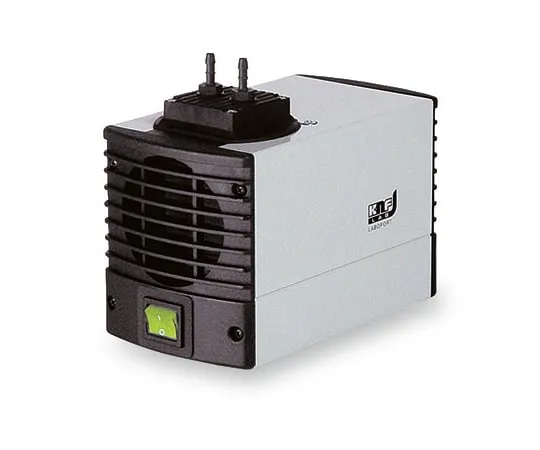

1-5052-01 Vacuum Pump, Compressor (Diaphragm Type) 10 kPa(abs) N86KN.18
Product Description
Product Model: 1-5052-01Product Brand: KNF Co., Ltd. Fe […]
Contact Us
Product Details
Product Model: 1-5052-01
Product Brand: KNF Co., Ltd.
Features
- It is oil-free and contamination-free and does not stain the gas it handles.
- You own the CE mark.
Spec
- Model number: N86KN.18
- Maximum air volume (L/min): 6
- Achieving pressure (kPa abs): 10
- Maximum discharge pressure: 240kPaG
- Material: Pump head/PPS (polyphenylene sulfide), Diaphragm/EPDM (ethylene propylene rubber), Valve/Viton (R)
- Internal thermal protector
- Used temperature: 40℃
- Power supply: 100VAC 50/60Hz 70W 1.8A
- Connection tube inner diameter: φ4mm
- Size: 164 x 90 x 141mm (excluding projections)
- Weight: 1.9kg
- Diaphragm type
