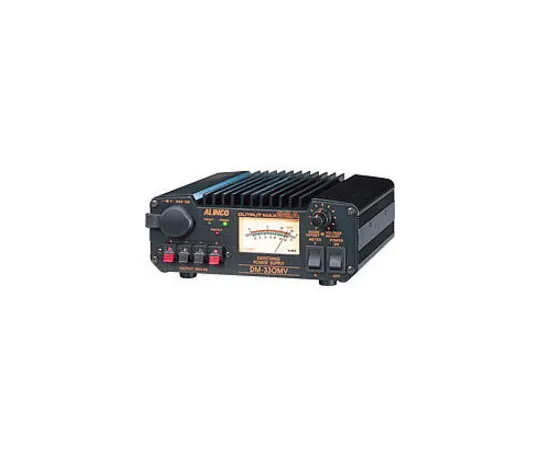

63-3192-54 Stabilizing power supply for radio equipment (32 A, 5~15 VDC) DM330MV
Electronic/Electrical Parts and Controll Equipments

63-3192-54 Stabilizing power supply for radio equipment (32 A, 5~15 VDC) DM330MV

model: 63-3192-54
brand: ALINCO INCORPORATED

Product Description

Product Model: 63-3192-54Product Brand: ALINCO INCORPOR […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3192-54
Product Brand: ALINCO INCORPORATED

Features

  • Stabilizing power supply for radio equipment such as amateur radio. By adopting the switching system, we have achieved a stable supply of 30 A continuously while reducing the size and weight. Noise can be avoided by the noise offset function, and various protection circuits protect connected devices. Other features include a fixed voltage preset function, various output terminals as standard, and a large, easy-to-read voltage/current meter.
  • Main Specifications
  • Power supply voltage 100 VAC
  • Output Voltage: 5~15 VDC (Variable) 13.8 VWith Center Click
  • Intermittent Maximum Output (at 13.8 V) 32 A
  • Continuous Maximum Output (at 13.8 V) 30 A
  • protection circuit drooping characteristic automatic current limiting system
  • Protection circuit operating point 32 A or more
  • Used F*** 10 A
  • Output System Screw Type Terminal/1 System (35 A)/Cigar Liter Socket/1 System (10 A)/One Touch Push Terminal/2 Systems (6 A)
  • Meter A/V switching type
  • Fan temperature control type fan
  • Dimensions (W x H x D) 175 x 67 x 165 mm
  • Weight 2 kg
  • Range of Use Radio/Output up to 100 W/Power Booster/Output up to 200 W
