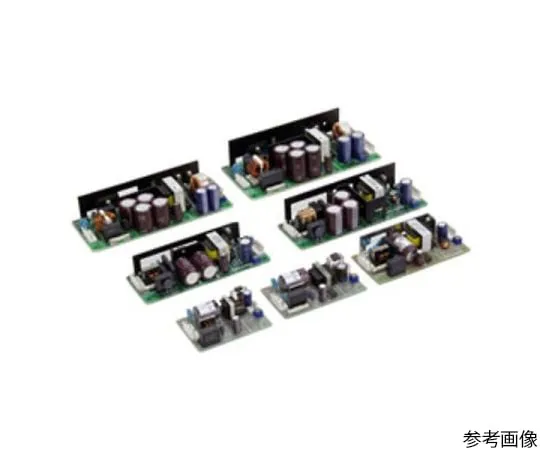

64-5675-40 Substrate Power Supply ZWS-B Series 50 W 24 V ZWS50B-24
Product Description
Product Model: 64-5675-40Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5675-40
Product Brand: TDK-Lambda Corporation
Features
- Features
- Simple circuit configuration without harmonic current suppression circuit
- Compact, lightweight, high efficiency
- Significantly reduced input power to 0.2 W (typ) at no load (ZWS10B, ZWS15B, ZWS30B)
- Achieves 100% load factor at 50 ° operating ambient temperature (standard installation)
- Extensive lineup of options (With Cover, L Sheet Metal, Coated on Both Sides of Substrate, Volumeless)
Spec
- Output Power: 50 W
- Input voltage range: 85 ~ 265 VAC (47 ~ 63 Hz) or 120 ~ 370 VDC
- Output Voltage: 24 V
- Output Current: 2.1 A
- Efficiency (typ): 0.85/0.87 (100/200 VAC)
- Operating temperature range (deg. C): -10 to + 70 (-10 to + 50: 100%, + 60: 75%, + 70: 50%)
- Dimensions (mm): 50 x 26 x 132
- Remarks: No cover
- RoHS compliant
