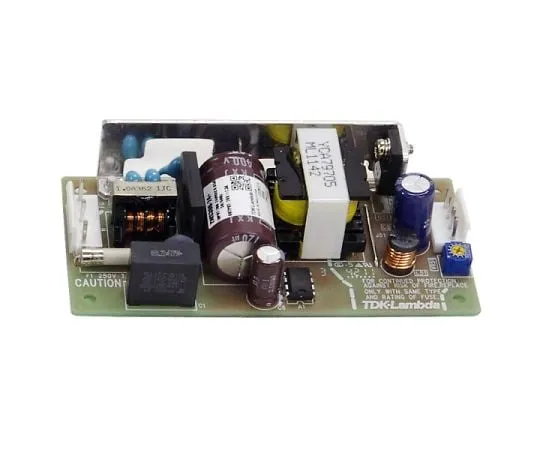

64-5675-33 Substrate Power Supply ZWS-B Series 30 W 15 V ZWS30B-15
Product Description
Product Model: 64-5675-33Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5675-33
Product Brand: TDK-Lambda Corporation
Spec
- Key Features
- Simple circuit configuration without harmonic current suppression circuit
- Small, lightweight and highly efficient
- Dramatically reduced input power at no load to 0.2 W (typ)
- Ability to *** 101% load factor at 50 C operating ambient temperature (standard installation)
- A wide range of options (With Cover, With L Sheet Metal, Double-sided Board Coating, Volumeless)
- Key Specifications
- Output Power 30 W
- Input voltage range 85 ~ 265 VAC or 120 ~ 370 VDC
- Output voltage DC 15 V
- Output Current 2.0 A
- Efficiency (typ) 0.85/0.87 (100/200 VAC)
- Operating temperature range: -10 to + 70 degrees Celsius (-10 to + 50 C: 100%, + 60 C: 70%, + 70 C: 20%)
- Dimensions 50 x 26 x 105 mm
- Remarks No cover
- RoHS compliant
