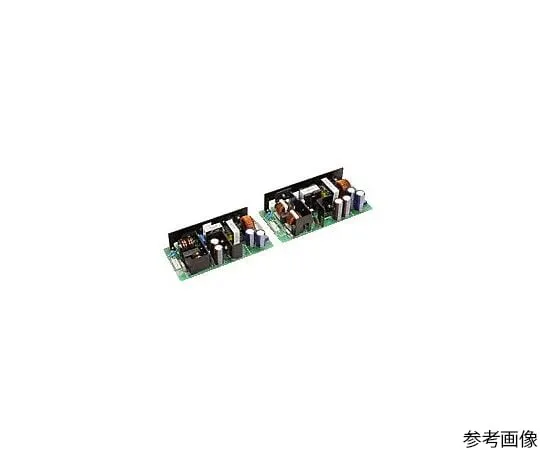

64-5675-17 Single Board AC-DC Switching with Power Cover 240 W 24 V ZWS240BP-24A
Product Description
Product Model: 64-5675-17Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5675-17
Product Brand: TDK-Lambda Corporation
Features
- Ideal for drivetrain load with 2x peak load
- Contributes to device energy saving by increasing efficiency by more than 5% compared to conventional products and at full load
- Achieves a significant reduction in size and weight by more than 30% compared to conventional products. 33% reduction in volume ratio, 31% reduction in weight ratio
- Significantly reduced standby power when control is off
- Achieves 100% load factor at 50°C operating ambient temperature (standard installation)
- Guarantees -10°C to +70°C operating ambient temperature for all models (standard installation)
Spec
- (Schematic specifications)
- Rated output voltage: 24 V
- Input voltage range 85 ~ 265 VAC (47 ~ 63 Hz) or 120 ~ 370 VDC (85 -90 VAC: Io = 80%)
- Maximum output current (average) 10.0 A
- Maximum output power (average) 240 W
- Maximum output current (peak) 20.0 A
- Maximum output power (peak) 480 W
- Leakage current 0.5 mA max.
- Cooling method Natural air cooling
- Operating ambient temperature -10 to + 70 degrees C
- (with derating by temperature)
- Harmonic current regulation IEC 61000 -3 -2 compliant (with built-in active filter)
- Compliance with the Immunity Regulations IEC 61000 -6 -2 and IEC 61000 -4 -2, -3, -4, -5, -6, -8, -11
- EMI noise limits EN 55011/EN 55022 -B, FCC-B, VCCI-B, respectively
- Safety standards UL 60950 -1, CSA 60950 -1, EN 60950 -1, EN 50178 (OV II), each certification
- Electrical Appliances and Material Safety Act 100 VAC Compliance
- Size (W x H x D mm) 84 x 42 x 180 mm (substrate type)
- Peak current operation is 5 seconds or less (Duty < lt; 0.4).
- Keep the average output power value during peak operation within the maximum output power value.
- RoHS compliant
