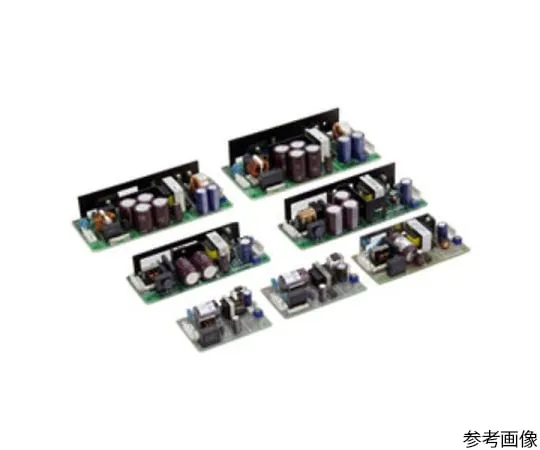

64-5675-15 Substrate Power Supply ZWS-B Series 15 W 5 V ZWS15B-5
Product Description
Product Model: 64-5675-15Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5675-15
Product Brand: TDK-Lambda Corporation
Features
- Features
- Simple circuit configuration without harmonic current suppression circuit
- Compact, lightweight, high efficiency
- Significantly reduced input power to 0.2 W (typ) at no load (ZWS10B, ZWS15B, ZWS30B)
- Achieves 100% load factor at 50 ° operating ambient temperature (standard installation)
- Extensive lineup of options (With Cover, L Sheet Metal, Coated on Both Sides of Substrate, Volumeless)
Spec
- Output Power: 15 W
- Input voltage range: 85 ~ 265 VAC (47 ~ 63 Hz) or 120 ~ 370 VDC
- Output Voltage: 5V
- Output Current: 3.0 A
- Efficiency (typ): 0.76/0.78 (100/200 VAC)
- Operating temperature range (deg. C): -10 to + 70 (-10 to + 50: 100%, + 60: 70%, + 70: 40%)
- Dimensions (mm): 50 x 22 x 87.5
- Remarks: No cover
- RoHS compliant
