Spec

• (Schematic specifications)
• Rated output voltage: 48 V
• Input voltage range 85 ~ 265 VAC (47 ~ 63 Hz) or 120 ~ 370 VDC (85 -90 VAC: Io = 80%)
• Maximum output current (average) 3.2 A
• Maximum output power (average) 153.6 W
• Maximum output current (peak) 6.4 A
• Maximum output power (peak) 307.2 W
• Leakage current 0.5 mA max.
• Cooling method Natural air cooling
• Operating ambient temperature -10 to + 70 degrees C
• (with derating by temperature)
• Harmonic current regulation IEC 61000 -3 -2 compliant (with built-in active filter)
• Compliance with the Immunity Regulations IEC 61000 -6 -2 and IEC 61000 -4 -2, -3, -4, -5, -6, -8, -11
• EMI noise limits EN 55011/EN 55022 -B, FCC-B, VCCI-B, respectively
• Safety standards UL 60950 -1, CSA 60950 -1, EN 60950 -1, EN 50178 (OV II), each certification
• Electrical Appliances and Material Safety Act 100 VAC Compliance

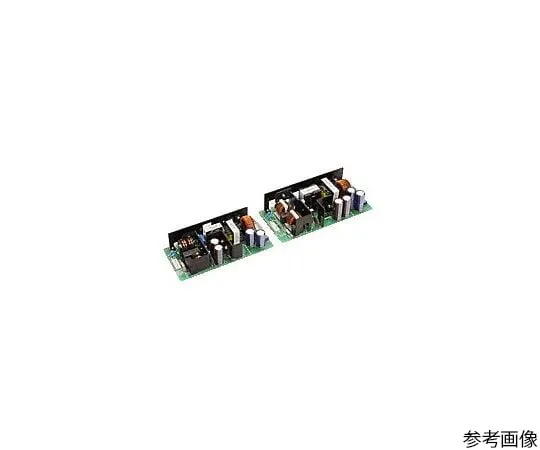

• Size (W x H x D mm) 75 x 37 x 160 mm (substrate type)
• Peak current operation is 5 seconds or less (Duty < lt; 0.4).
• Keep the average output power value during peak operation within the maximum output power value.
• RoHS compliant
