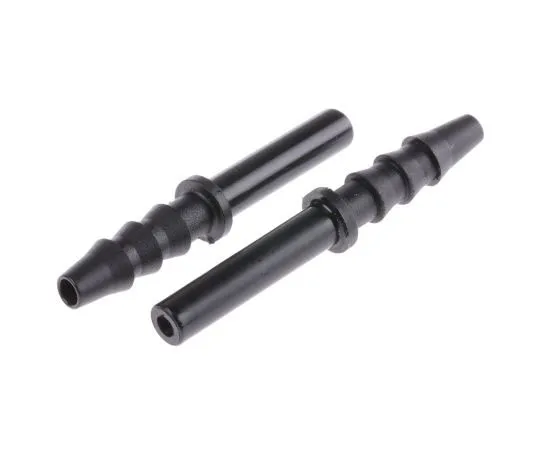

63-4737-98 Legris 3122 Pneumatic Straight Tube-to-Tube Adapter, Plug In 4 mm 3122 04 53
Product Description
Product Model: 63-4737-98Product Brand: Legris Features […]
Contact Us
Product Details
Product Model: 63-4737-98
Product Brand: Legris
Features
- The "Tube Size" data quoted in the form "4mm (OD, plain ***); 5mm (ID of tube to connect, barbed ***)" relates to the Outside Diameter of the plain (non-barbed ***) of the connector, and the Internal Diameter of tube that will push on to the barbed *** of the connector on the other ***. Further details are available through the manufacturers website: ; http://www.legris.com http://www.legris.com. Barbed Connector for Unequal Flexible Tube. Barbed Connectors enable flexible tube of different diameters to be connected together, using a simple push-in fitting.
Spec
- Quantity：1bag(5pieces)
- Manufacturer Series : 3122
- Tube Connection A : Plug In 4 mm
- Tube Connection B : Plug In 3.2 mm
- Body Material : Glass Reinforced Nylon
- Maximum Operating Pressure : 20 bar
- Minimum Operating Temperature : -20°C
- Tube Connection B - Type : Plug In
- Tube Connection A - Tube Size : 4mm
- Tube Connection A - Type : Plug In
- Tube Connection B - Tube Size : 3.2mm
- Maximum Operating Temperature : +80°C
- Connection Style : Tube-to-Tube
- CODE No.:227-5650
