63-4152-06 Anti-Static PFA Heat Shrink Tube 20PB 500L GRC-PB-20PB-500
Product Description
Product Model: 63-4152-06Product Brand: GUNZE LIMITED F […]
Contact Us
Product Details
Product Model: 63-4152-06
Product Brand: GUNZE LIMITED
Features

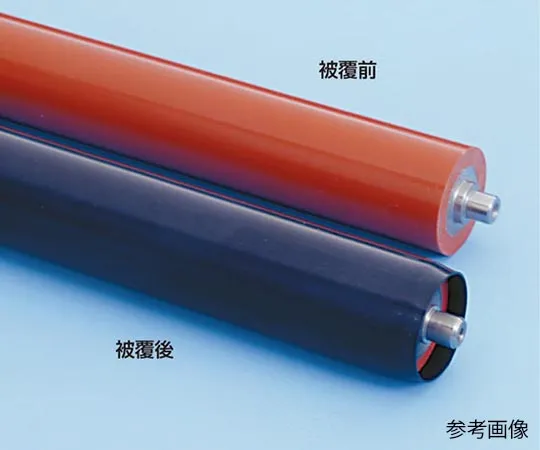

- Fluororesin (PFA) heat-shrinkable tube with antistatic properties added to GRC. It provides anti-static effects without compromising the non-adhesive properties of PFA.
- Main characteristics: [(1) Anti-static, (2) Non-adhesive (stain resistant), (3) Chemical resistance]
- Please contact us for the desired length, length, thick type, etc.
- [Precautions]
- Store in a cool dark place (30°C or less) to maintain the inner diameter before shrinkage.
- The internal diameter after shrinkage is measured after heating at 200°C for 10 minutes, and is not a guarantee value.
- The possibility of slipping and wrinkling is very high when the watch is ***d in areas with a high temperature of 100°C or higher or where the nip pressure is high. Please consult me.
- This product is processed to reduce the generation of static electricity, and does not eliminate the generation of static electricity.
Spec
- Material: Fluororesin (Conductive PFA)
- Inner diameter before contraction (mm): phi 21.5
- Inner diameter after contraction (mm): phi 19.5
- Thickness (mm): 0.5
- Length (mm): 500
- Maximum supported length (mm): 1200
- Code: NR 5031 - 020
