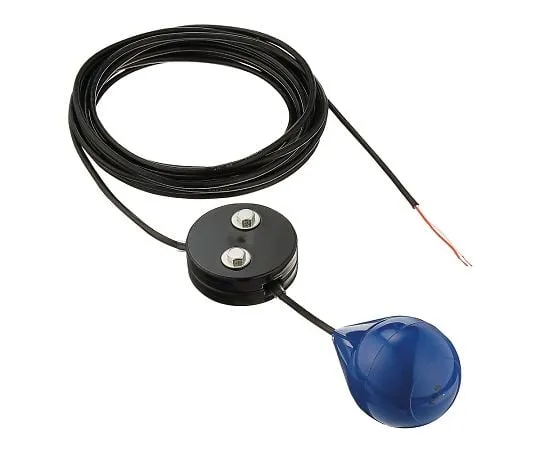

3-9658-01 Mini Switch (Liquid Level Control Switch) MS-11 6M
Product Description
Product Model: 3-9658-01Product Brand: ShinMaywa Indust […]
Contact Us
Product Details
Product Model: 3-9658-01
Product Brand: ShinMaywa Industries, Ltd.
Features
- Wastewater level detection switch using reed switch for detection contact.
- The float changes its inclination with the glove or bundle band as a fulcrum in conjunction with the top and bottom of the liquid surface, and the switch contacts open and close.
- One liquid level is detected per switch.
Spec
- Cable length (m): 6
- Material : Body/ABS Plastic , Omori/FC 150 (PVC coating) , Cable/PVC (soft)
- Specific gravity of the solution ***d: 0.95 to 1.1
- Operating temperature: 0 to 40 ℃
- Voltage: AC/DC 30 V or less
- Maximum current ***d: 0.5 A
- Contact point max capacity: AC 10 VA, DC 10 W
- Contact Type: a Contact
- Cable type: 0.2 mm2 x 2 cores, outer diameter φ4.7 mm
