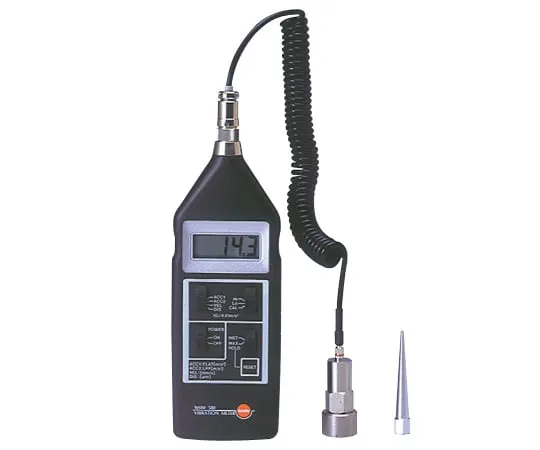

1-6434-01 Digital Vibrometer OH-580A
Product Description
Product Model: 1-6434-01Product Brand: Testo K. K. Feat […]
Contact Us
Product Details
Product Model: 1-6434-01
Product Brand: Testo K. K.
Features
- 3 mode measuring of acceleration, speed, and displacement are possible.
- Max. holdfunction provided.
Spec
- Model number: OH-580A
- Main unit size (mm): 72 x 24 x 220
- Body weight (g): 200 (including dry cell)
- Detection method: Effective value detection
- Measurement accuracy: Within FS±5%
- Display cycle: 3 times/second
- Power supply: AA dry cell x 2 pieces (attached), AC100V (optional)
-
- Acceleration rate (ACC1): 10 - 6000Hz, Hi: 1.0 - 199.9m/sec^2, Lo: 0.1 - 19.99m/sec^2
- Acceleration rate (ACC2): 10 - 300Hz, Hi: 1.0 - 199.9m/sec^2, Lo: 0.1 - 19.99m/sec^2
- Velocity (VEL): 10 - 1000Hz, Hi: 1.0 - 199.9mm/sec, Lo: 0.1 - 19.99mm/sec
- Displacement (DIS): 10 - 1000Hz, Hi: 10 - 1999μm, Lo: 1 - 199.9μm
- ■Accessories: Pickup, Pickup cable, Magnet holder, Attachment, Hand strap, Microdriver, Storage case
