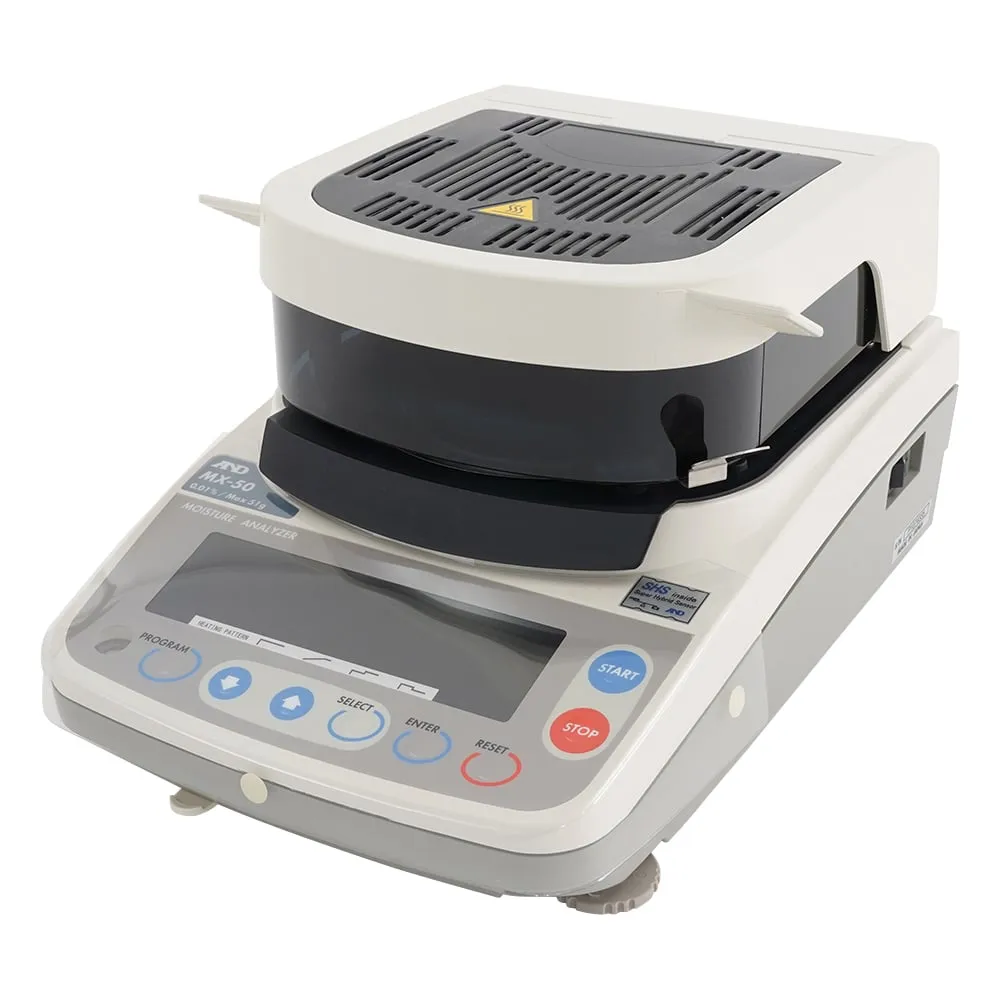

1-6432-01 Moisture Meter MX-50
Product Description
Product Model: 1-6432-01Product Brand: A&D Features […]
Contact Us
Product Details
Product Model: 1-6432-01
Product Brand: A&D
Features
- [Applications]
- For R & D, manufacturing, and quality control of products in a wide range of industries, including powder and water-based paints, resin pellets, chemical materials, food, pharmaceuticals, and cosmetics
- [Features]
- New water percentage measurement proposal Indicate water percentage from 0.001% to 0.1% dep***ing on the application.
- High repeatability with high precision sensor SHS [patented]
- High speed and uniform heating with straight tube halogen lamp and new mechanism SRA [patented].
- The measurement conditions of each sample are stored in 5~20 ways dep***ing on the model.
- Up to 30~100 measurement results are stored (dep***ing on the model).
- Selectable measurement modes: "Standard Mode," "Rapid Mode," "Auto End Mode," "Timer Mode," "Manual Mode."
- RS-232C Standard (D-Sub25P female)
- Real-time graphing of measurement data (Special Software WinCT-Moisture Standard Included: MS-70, MX-50 Only)
Spec
- Model number: MX50
- Weighing: 51g
- Plate size: φ85mm
- Main unit size: 215 x 320 x 173mm
- Weight: Approx 6kg
- Power supply: AC 100V (+10% , -15%)
- Minimum display: Moisture rate (Selectable) (%)/0.01 (0.1), Mass display (g)/0.001
- Measurement accuracy: Moisture rate (sample mass 5g or more/1g or more) (%)/0.02/0.1, Mass display (g)/0.001
- Measurement units: Moisture rate%, Solid content %, Ratio %, Mass display g
- Measurement temperature range (℃): 50 - 200 (1℃ step)
- Conditions for measurement termination: Standard mode, rapid mode, automatic termination mode, timer mode , manual mode
- Accessories: Plate support, windshield, display section protective cover, step card, power cord (2 m), Sample plate x 20 sheets, sample plate holder x 2 pieces, tweezers, spoon, test sample, glass fiber sheet 78mmφ (Glass paper 100 sheets), body cover, CD-ROM (WinCT-Moisture), RS232C cable
