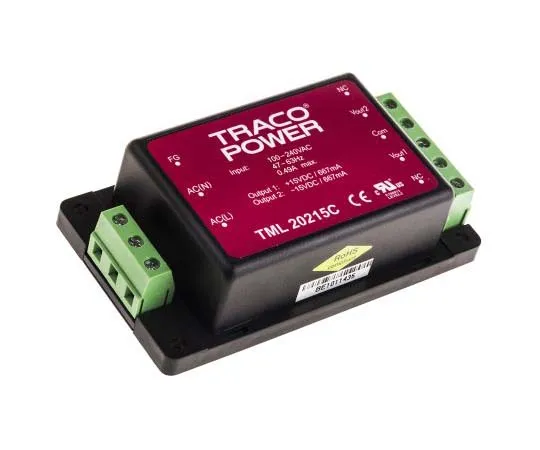

63-7725-80 TRACOPOWER 20W Dual Output Embedded Switch Mode Power Supply SMPS, 667mA, ±15V dc Encapsulated TML 20215C
Product Description
Product Model: 63-7725-80Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7725-80
Product Brand: TRACOPOWER
Features
- UL 60950-1, IEC 60950-1, EN 60950-1. UL Recognised Component for Canada ; US. Chassis mounting types available, see Manufacturer Part numbers with a 'C' suffix. Power derating above 50°C is 3% per °C. MTBF to MIL-HDBK-217F (25°C). 3. Traco 14.9W to 40W, PCB/Chassis Mount, Encapsulated, Switch Mode AC-DC Power Supply - TML Series. Ultra compact fully encapsulated power supplies with increased power density PCB mount with solder pins or chassis mount with screw terminals EMI meets EN 55022, class B and FCC, level B Safety Class I (Class II, TML40 models only) Short circuit and overload protection
Spec
- Quantity:1piece
- Output Voltage : ±15V dc
- Output Current : 667mA
- Power Rating : 20W
- Number of Outputs : 2
- Input Voltage : 100 → 375 V dc, 90 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Encapsulated
- Length : 96mm
- Width : 54.6mm
- Depth : 27.6mm
- Weight : 155g
- Efficiency : 75 → 84%
- Maximum Temperature : +60°C
- Minimum Temperature : -25°C
- CODE No.:706-6158
