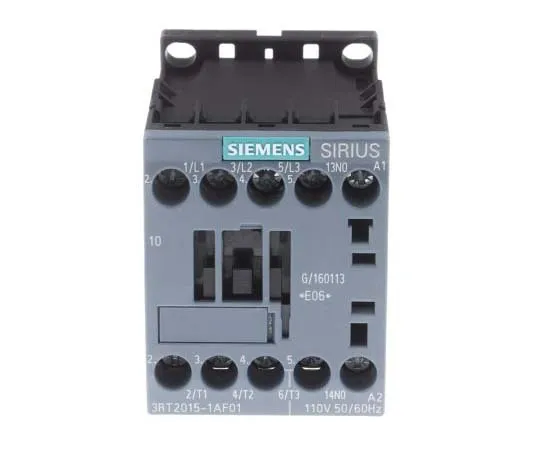

63-7721-21 Siemens 3 Pole Contactor, 7 A, 110 V ac Coil, SIRIUS Innovation, 3NO, 3 kW 3RT2015-1AF01
Product Description
Product Model: 63-7721-21Product Brand: Siemens Feature […]
Contact Us
Product Details
Product Model: 63-7721-21
Product Brand: Siemens
Features
- CE, UL, CSA, CCC. Screw terminals can only be ***d with screw terminal overloads and spring terminals can only be ***d with spring terminal overloads. Contactors – 3RT2 Range. The 3RT2 contactors are climate-proof and are suitable and tested for *** worldwide, sizes S00 to S2, up to 37 kW. Size S00, up to 7.5 kW Size S0, up to 18.5 kW Size S2, up to 37 kW Screw connection / Spring Clamp Impulse voltage resistance 6 kV Insulation voltage 690 V Real loss power only 4 W Designation K according to DIN 40719 (ext***able to IEC 204-2) ; IEC 750; Q according to DIN EN 61346-2
Spec
- Quantity:1piece
- Coil Voltage : 110 V ac
- Number of Poles : 3
- Contact Current Rating : 7 A
- Power Rating : 3 kW
- Range : SIRIUS Innovation
- Series : 3RT2
- Normal State Configuration : 3NO
- Contact Voltage Rating : 400 V ac
- Number Of Auxiliary Contacts : 1
- Terminal Type : Screw
- Width : 45mm
- CODE No.:706-1068
