63-7720-49 Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 3.8L/min, 2.5 bar, 12 V dc RLFP122202D
Electronic/Electrical Parts and Controll Equipments

63-7720-49 Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 3.8L/min, 2.5 bar, 12 V dc RLFP122202D

model: 63-7720-49
brand: Xylem Flojet

Product Description

Product Model: 63-7720-49Product Brand: Xylem Flojet Fe […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7720-49
Product Brand: Xylem Flojet

Features

  • Do not *** for volatile low flash point solvents or fuels, also un-suitable for flammable liquids or in explosive atmospheres. CE, NSF. Flojet RLF diaphragm pumps. Ultra Compact diaphragm pump ***s unique Duplex design to deliver flow and pressure comparable to much larger pumps. Suitable for water and light water based chemicals. Pumps can be situated above water level. Self Priming up to 0.75m Maximum liquid temperature 43°C Can run dry for ext***ed period Built-in thermal overload protection Low amp draw for battery powered applications Pressure switch control for automatic on/off if required Built in backflow preventer

Spec

  • Quantity:1piece
  • Pump Type : Diaphragm
  • Drive Type : Electric
  • Maximum Flow Rate : 3.8L/min
  • Maximum Head : 21m
  • Maximum Working Pressure : 2.5 bar
  • Input Connection : 3/8 in Hose Barb
  • Output Connection : 3/8 in Hose Barb
  • Series : RLF122
  • Maximum Fluid Temperature : +43°C
  • Body Material : PP
  • Supply Voltage : 12 V dc
  • Input Power : 30W
  • Wetted Materials : EPDM, PP, Santoprene, Stainless Steel, Viton
  • Input Connection Size : 3/8in
  • CODE No.:705-9321

Related product recommendations

You may also be interested in the following products

63-7534-99 STMicroelectronics BU941ZPFI NPN Darlington Pair, 15 A 350 V HFE:300, 3-Pin TO-3PF BU941ZPFI
Electronic/Electrical Parts and Controll Equipments
63-5055-63 JST YRS Ratchet Crimping Tool for SSH YRS-859
Electronic/Electrical Parts and Controll Equipments
63-7507-06 TE Connectivity MULTILOCK 040 Male Crimp Terminal Contact 20AWG 175063-1 175063-1
Electronic/Electrical Parts and Controll Equipments

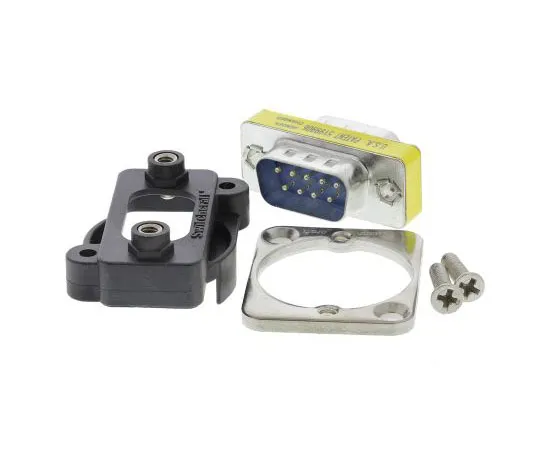

63-7656-84 Switchcraft G***er Changer , For *** with 9 Way D-Sub Connector EHDB9MM
