Electronic/Electrical Parts and Controll Equipments

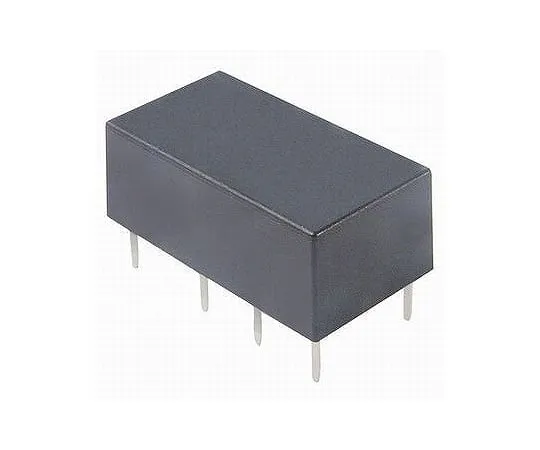

63-3177-87 Small latching relay G6AK274PDC12V
model:
63-3177-87
brand:
OMRON Corporation
Product Description
Product Model: 63-3177-87Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 63-3177-87
Product Brand: OMRON Corporation
Features
- In a normal relay, the contact state is determined by whether one coil is energized or not.
- This latching relay has two windings, set and reset, and the contact is set (ON) by energizing one of them, and reset (OFF) by energizing the other. The contact state is determined by which coil was energized just before, and the state is maintained even if energization is stopped.
Spec
- Implementation: printed circuit boards
- Contact Configuration: 2c
- Coil rating/DC voltage: 12 V
- Contact section and rating load DC: 30 V, -2 A
- Contact area/rating load AC: 125 V, -0.5 A
- contact mechanisms: crossbar twins
- Coil rated current: 15 mA
- Coil and coil resistance: 800 Ω
- Inductance at return of set coil: 0.6 H
- Set coil operating inductance: 0.45 H
- Inductance at reset coil reset: 0.45 H
- Set coil operating inductance: 0.6 H
- Coil set voltage: 70% or less
- Coil reset voltage: 70% or less
- Size: 20.2 mm x 10.1 mm x 8.0 mm
- Operating temperature range: -40 ° C to + 70 ° C
