Electronic/Electrical Parts and Controll Equipments

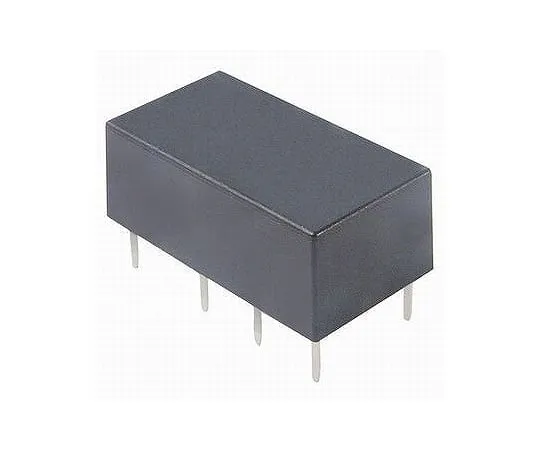

63-3177-86 Two-Wire type Latching relay G6AK274PDC5V
model:
63-3177-86
brand:
OMRON Corporation
Product Description
Product Model: 63-3177-86Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 63-3177-86
Product Brand: OMRON Corporation
Features
- Cross-bar twin contact (gold alloy) relay, mainly for small signals.
- The number of contacts is 2c (two contacts of NO/NC are two circuits).
- The operation is maintained even when the current of the driving coil is turned off by latching.
- There are 2 coils, each set, for reset only.
Spec
- Implementation: printed circuit boards
- Contact Configuration: 2c
- Coil rating/DC voltage: 5.0 V
- Contact section and rating load DC: 30 V, -2 A
- Contact area/rating load AC: 125 V, -0.5 A
- contact mechanisms: crossbar twins
- Coil rated current: 3.0 mA
- Coil and coil resistance: 139 Ω
- Inductance at return of set coil: 0.11 H
- Set coil operating inductance: 0.08 H
- Inductance at reset coil reset: 0.08 H
- Set coil operating inductance: 0.11 H
- Coil set voltage: 70% or less
- Coil reset voltage: 70% or less
- Size: 20.2 mm x 10.1 mm x 8.0 mm
- Operating temperature range: -40 ° C to + 70 ° C
