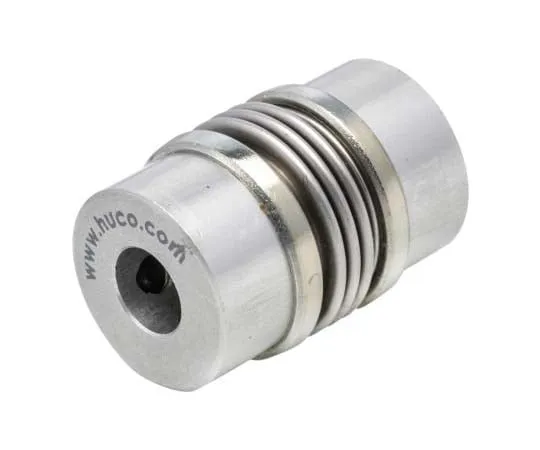

63-7702-88 Huco Stainless Steel 26mm OD Bellows Coupling With Set Screw Fastening 530.26.3232
Product Description
Product Model: 63-7702-88Product Brand: Huco Features S […]
Contact Us
Product Details
Product Model: 63-7702-88
Product Brand: Huco
Features
- Stainless Steel Bellows Couplings - Set Screw Type. High torsional stiffness for positional accuracy Low inertia Ideal for servo drive applications with high precision dynamic position control Material: Aluminium hub; stainless steel bellows
Spec
- Quantity:1piece
- Bore : 10mm
- Outside Diameter : 26mm
- Length : 37.5mm
- Fastening Type : Set Screw
- Torque Rating : 4.62Nm
- Torsional Stiffness : 755Nm/rad
- Moment of Inertia : 350 x 10^-8kg/m²
- Misalignment - Angular : 2°
- Misalignment - Parallel : 0.06mm
- Misalignment - Axial : 0.36mm
- Bellows Material : Stainless Steel
- CODE No.:693-2483
