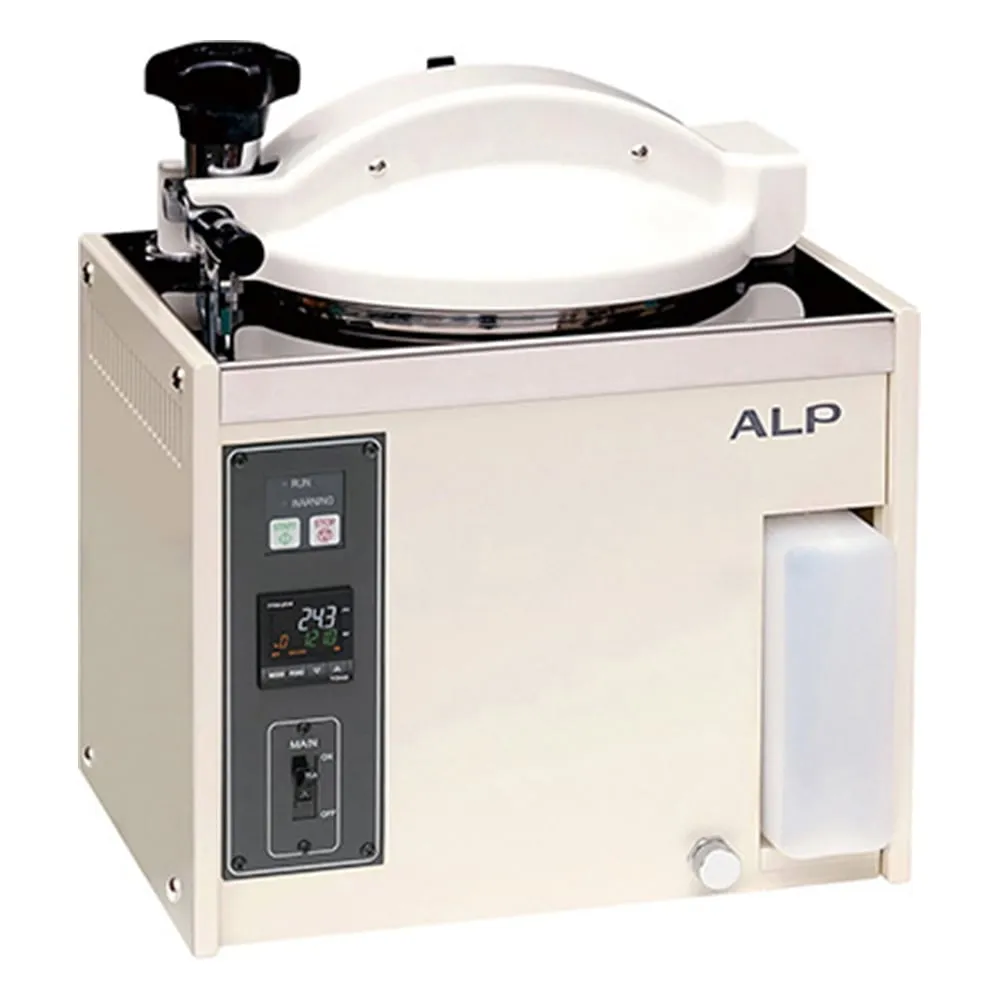

6-9743-31 Small High-Pressure steam Sterilization 12 L KTR-2322
model:
6-9743-31
category:
chemicalproducts
Product Description
Product Model: 6-9743-31 Features The temperature sensi […]
Contact Us
Product Details
Product Model: 6-9743-31
Features
- The temperature sensing and time controlled solenoid valve deflates the air, providing reliable sterilization according to the load.
- After sterilization, the machine is allowed to cool naturally, and after lowering the temperature to the safe temperature for opening the lid, the operation lamp turns off.
- It also has a forced exhaust valve.
Spec
- external dimension (mm) : 370 x 300 x 430
- Can Body capacity: 12 L
- Can Dimensions (mm): Φ 230 x 220
- Operating Temperature Range: 110 to 125 ° C (Setup/0.1 ° C interval)
- pressure of *** range : 0 to 0.16 MPa
- Timer: 1 second to 99 minutes 59 seconds (digital temperature control)
- Can Body/Lid/Surface Plate material: SUS304, Lid Packing: Silicone Rubber Molded Product
- Outer Plate material: Steel Plate, melamine baking coating
- PNEUMATIC BLOOD PREVENTION DEVICE: HEAT SENSING HYDRAULIC PRESSURE SWITCH
- Pressure relief device: cut-off system with pressure sensitive sensor (Heater power supply is turned off, alarm buzzer and Red lamp is lit.)
- Safety Valve: Stainless Steel Spring Type Outlet Pressure: 0.18 MPa
- breaker: overcurrent breaker (earth leakage breaker: options)
- Heater: 1.0 kW
- power supply: AC100V 50/60 Hz
- power supply: 10 A
- Weight: 16 kg
- Attached Stainless Steel Net Basket: φ 210 x 200 mm x 1 piece
- Attached Exhaust Drain Receiving Tank: Poly Tank x 1 piece
- *This product is not a medical device.
*This product might require extra fees.
