63-7699-54 Amphenol HD Series Through Hole, 26 Pin D-sub Connector Plug, Shell Size A High Density L717HDA26P
Product Description
Product Model: 63-7699-54Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-7699-54
Product Brand: Amphenol
Features
- Connectors according to: MIL C24308 - NFC 93425-HE5. Amphenol SD Series High Density D-Sub Plug Connectors with Solder Cup Terminals. SD series high density D-Sub plug connectors with solder cup terminals and precision stamped and formed contacts. These SD series HD d-sub plug connectors have a tin plated steel shell with dimples, a glass-filled thermoplastic UL 94V-0 insulator with closed entry contact cavities, gold flash plated pin contacts and 3.05 holes for front mounting. Typical applications for these SD series high density d-sub plug connectors include industrial, telecom and any industry standard I/O applications.
Spec
- Quantity:1bag(50pieces)
- Number of Contacts : 26
- G***er : Male
- D Connector Type : High Density
- D-Sub Shell Size : A
- Body Orientation : Straight
- Current Rating : 3A
- Contact Plating : Gold
- Series : HD
- Length : 39.1mm
- Depth : 22.22mm
- CODE No.:170-2637
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4741-23 RS PRO 2 wire PT100 Sensor, -50°C min +250°C max, 150mm Probe Length x 4mm Probe Diameter 237-1663
model: 63-4741-23
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

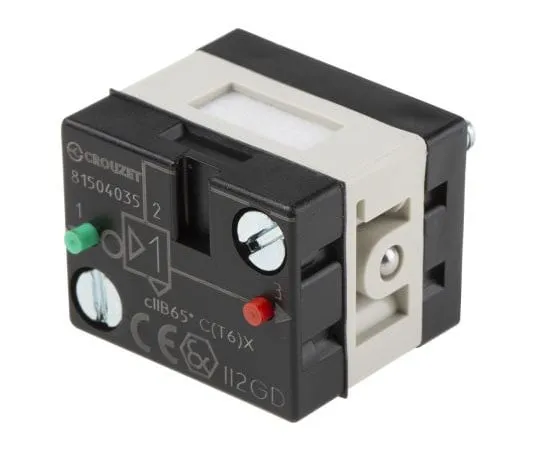

63-7641-35 Crouzet 2 → 8bar NO Pneumatic Logic Controller, -5 → +50°C 81504035
