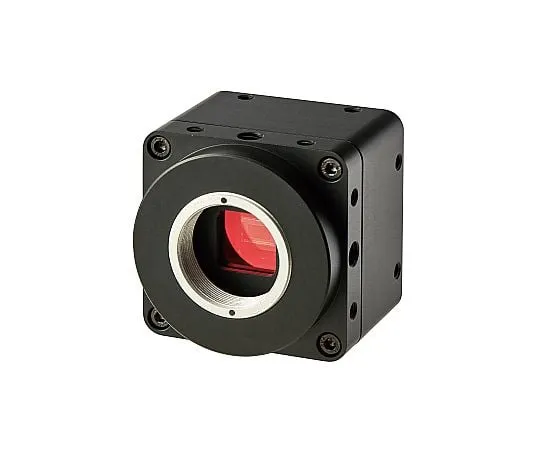

68-5183-10 Monitor Output Camera L-852
Product Description
Product Model: 68-5183-10Product Brand: HOZAN TOOL INDU […]
Contact Us
Product Details
Product Model: 68-5183-10
Product Brand: HOZAN TOOL INDUSTRIAL CO., LTD.
Features
- A variety of functions from observation to measurement in a compact size
- PC not required
- This camera is ***d by connecting to an HDMI monitor.
- In addition to the basic functions required for observation, it is also equipped with functions for measuring distances and angles, and is suitable for all fields and processes.
- The housing is robust and has many mounting screws.
- In addition to being fixed to an arm with camera screws, it can also be mounted to holder L-509 with a mounting diameter of 50 mmφ.
Spec
- Function
- Equipped with a dedicated OS
- Basic functions: Preview, still image/movie recording
- Display functions: Digital zoom (1~10 x), image inversion, fixed screen, monochrome display, line display, HDR display
- Adjustments: Exposure, White Balance, Frequency, Gamma, Contrast, Saturation, Brightness, Sharpness, Noise Reduction, RGB
- Simple measurement functions: coordinates, freehand, distance between two points, distance between parallel lines, distance between line and point, angle between three points, rectangle, polygon, arc, circle, distance between line and circle center, distance between concentric circles, distance between circle center two points
- Remarks: No lens
- Frame rate: up to 60fps
- Lens mount: C-mount
- Dimensions: 52 (W) x 52 (H) x 44 (D) mm (excluding protrusions)
- still images: JPG
- VIDEO: AVI
- Storage medium: USB memory (USB2.0/Max. 128GB)
- Image sensor: 1/2. 8 "CMOS image sensor
- Weight: 166 g
- Output connector: HDMI
- Power consumption: 3W
- Power: 5 VDC (with AC Adapter)
- Accessories: USB Mo***/HDMI Cable (2 m)/USB Power Cable (1.5 m)/AC Adapter/USB Memory Included
- Number of saved pixels
- Still image: 1920×1080 (2 million pixels)
- Movie: 1920×1080 (2 million pixels)
- Effective pixels: 1920×1080 (2 million pixels)
