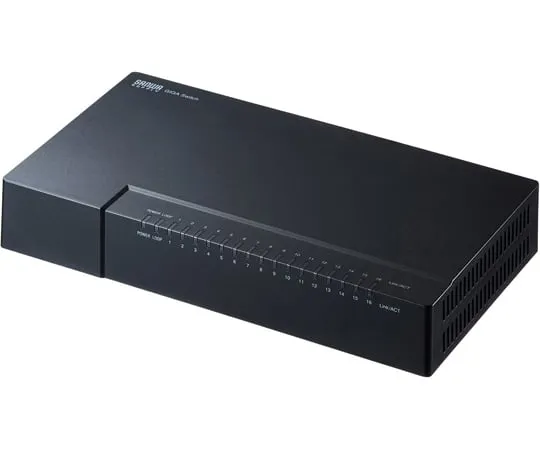

67-9320-98 Gigabit Switching Hub (16 Port, Magnet) LAN-GIGAP1602BK
Product Description
Product Model: 67-9320-98Product Brand: SANWA SUPPLY IN […]
Contact Us
Product Details
Product Model: 67-9320-98
Product Brand: SANWA SUPPLY INC.
Spec
- Number of ports: 16 ports
- Standards: IEEE802.3 (10BASE-T Ethernet), IEEE802.3u (100BASE-TX Fast Ethernet), IEEE802.3ab (1000BASE-T), IEEE802.3x (Flow control for Full-Duplex)
- access methods: CSMA/CD
- switching methods: Store & Forward
- Communication mode: Full duplex/Half duplex
- Port configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX x 16 ports
- Buffer memory: 512Kbytes (dynamically allocated per port)
- Flow control control: Yes
- switch fabric: 32Gbps
- Maximum packet forwarding capacity: 23.8Mpps
- Filtering rates: 1488000 packets per second (1000Mbps), 148800 packets per second (100Mbps), 14880 packets per second (10Mbps)
- MAC address tables: 8K
- AUTO MDIX: Yes
- Auto-negotiation: Yes (1000/100/10Mbps)
- VCCI standards: CLASS B certification
- Size: Body: W216 x D118 x H42mm, Wall Haul: Approx. W18 x D8 x H2.4mm
- Weight: about 514 g (body only)
- Cable length: 1.5 m
- Power consumption (MAX): 9.23 W
- Operating environment: Operating temperature/0~40°C, Operating humidity/10~90% (non-condensing), Storage temperature/-20~70°C, Storage humidity/5~90% (non-condensing)
- Accessories: Power Cable x 1, Wall-Mounting Set x 1, Owner's Manual
