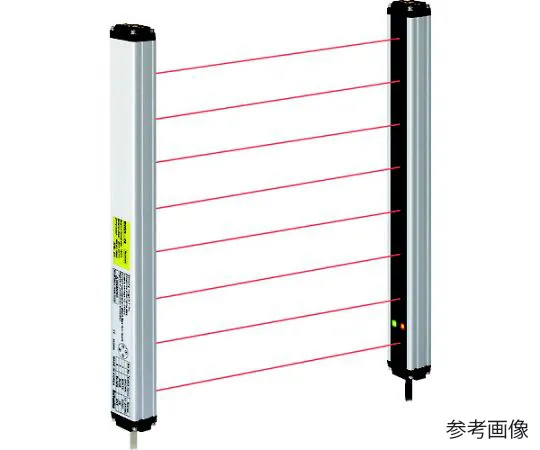

67-5566-49 Aluminum Case Area Sensor (2 Pieces per Set) BW20-24
Product Description
Product Model: 67-5566-49Product Brand: MARUYASU DENGYO […]
Contact Us
Product Details
Product Model: 67-5566-49
Product Brand: MARUYASU DENGYO CO.,LTD.
Features
- It achieves 7m long range detection.
- Detection stability is improved by minimizing the undetected area.
- For candy transfer line detection.
Spec
- Output Format: NPN Open Collector Output
- Detection distance (m): 0.1~7
- Length (mm): 22.6
- Width (mm): 28.6
- Height (mm): 500
- Optical axis width (mm): 140~940
- Optical axis pitch (mm): 20
- Number of optical axes (pcs): 8~48
- Protection rating: IP65 (IEC standard)
- Detection Method: Transparent
- Detected Object: Opaque (φ30 mm or more)
- Power supply voltage: 12-24 VDC
- Current consumption: 80 mA or less
- Protection rating: IP65 (IEC standard)
- Cord length: 0.3 m
- Built-in self-diagnosis function, mutual interference prevention function, and external diagnosis function
- CE
- Material/Finish: Aluminium
- Country of Origin: South Korea
- Securities Code: 208-0997
*This product might require extra fees.
