Spec

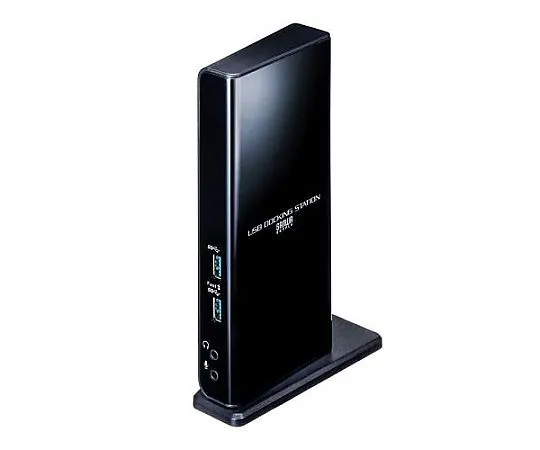

• Manufacturer: Sanwa Supply
• Model Number: USB-CVDK7
• Total ports — 9 ports
• Interface standard: Compliant with USB specification Ver. 3.2Gen1
• Supported OS: Windows 11, 10, 8.1, 8, 7 macOS 12, 11, macOS 10.12~10.15, OS X 10.8~10.11, Mac OS X 10.6, 10.7
• Size: 187.8 (W) x 76.9 (D) x 31.1 (H) mm
• Weight: 217 g
• Accessories: AC Adapter (DC5V/4A), Driver CD, Dedicated Stand, USB Cable for PC x 1
• Communication speed: 5Gbps/480Mbps/12Mbps/1.5Mbps
• Connector shape (USB hub section): USB3.2 Gen1 (USB3.1/3.0) B Connector female (upstream) x 1 USB3.2 Gen1 (USB3.1/3.0) A Connector female (downstream) x 2 USB2.0 A Connector female (downstream) x 4
• Connector Shape (Video Output): HDMI Type A (19PIN) Female x 2
• Current supplied: USB3.2 Gen1 (USB3.1/3.0) A connector/up to 900 mA per port USB2.0 A connector/up to 500 mA per port
• Supported resolutions: 2048×1152 (60 Hz), 1920×1200 (60 Hz), 1920×1080 (60 Hz), 1680×1050 (60 Hz), 1600×1200 (60 Hz), 1400×1050 (60/75/85 Hz), 1366×768 (60 Hz), 1280×1024 (60/75Hz), 1280×800 (60 Hz), 1280×768 (60/75/85 Hz), 1280×720 (60 Hz), 1024×768 (60/70/75/85Hz), 800×600 (56/60/72/75), 640×480 (60/72/75/85Hz)
• Dual Display Output: Supported
• Standard (LAN port): IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
• Communication mode: Full duplex/Half duplex
• access methods: CSMA/CD
• Port configuration: RJ-45 port (1000BASE-T/100BASE-TX/10BASE-T) Auto-MDIX, AutoNegotiation supported * Communication speed 1000BASE-T is supported only when USB3.2 Gen1 (USB3.1/3.0) is connected. To *** 1000BASE-T communication, devices such as hubs, modems, and cables must also support 1000BASE-T.
• Jack configuration (audio): Audio output jack 3.5 mm stereo mini jack x 1 Microphone input jack 3.5 mm mini jack x 1
