Electronic/Electrical Parts and Controll Equipments

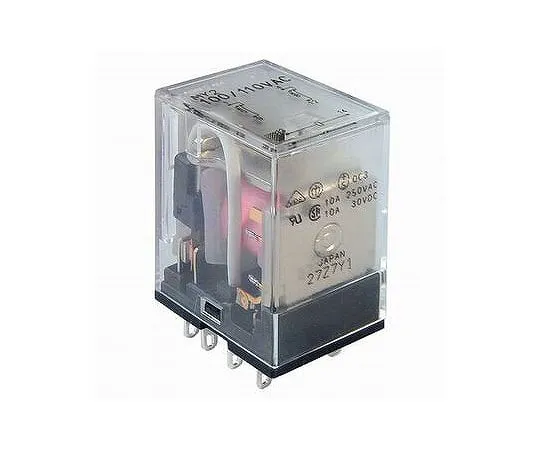

63-3171-96 Mini Power Relay AC100/110V MY2NAC100V
model:
63-3171-96
brand:
OMRON Corporation
Product Description
Product Model: 63-3171-96Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 63-3171-96
Product Brand: OMRON Corporation
Spec
- implementing: plug-ins
- Number of contact poles: 2c
- Coil rating Voltage: AC100/110
- Coil rating current: 11.7 mA (50Hz - AC100V), 10 mA (60Hz - AC100V)
- rating/Coil/Operating voltage: 80% or less
- rating/Coil return voltage: 30% or more
- Contact rating and resistance load DC: 24 V, -5 A
- Contact rating/Resistance load AC: 220 V, -5 A
- contact mechanisms: single
- Size: 28 mm x 21.5 mm x 36 mm
- Operating temperature range: -55 ° C to + 70 ° C
- Notes: With indicator lamp
- [technical information] Relay
