Spec

• Overview/Applications/Features

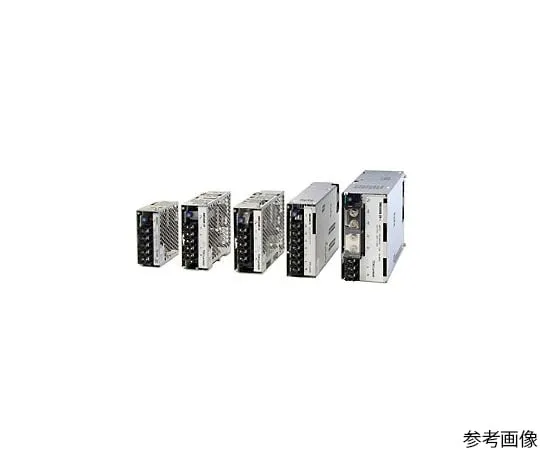

• Overview
• Simple function model that maintains basic performance and optimizes additional functions
• Set optional model with DIN rail mounting bracket
• Adopts a "safety terminal" covered with live parts to ensure safety. Prevent screw loss during maintenance work by preventing terminal screws from falling off
• Applications Computer, communication, measurement, FA, semiconductor
• Features Simple function model, high efficiency, long life
• ? Product Specifications
• Power Category AC-DC Switching Power Supply
• Morphology Case Form
• Insulation/Non-Insulation
• Number of outputs Nom1
• Input voltage range EdcMin 120 V
• Max370V
• Input voltage range EacMin 85 V
• Max265V
• Input frequency range Min 47 Hz
• Max63Hz
• Efficiency Typ 85%
• Power factor (AC at 100 V average load) Typ 0.95
• Power factor (AC at 200 V average load) Typ 0.9
• Input Current (AC 100 V) Typ 1.3 A
• Input Current (AC 200 V) Typ 0.7 A
• Leakage current 0.75 mA max
• Inrush current (AC 100 V) Typ 15 A
• Inrush current (AC 200 V) Typ 30 A
• Output voltage 1 Nom 48 V
• Output Current 1 Max 2.1 A
• Output voltage variable range 1 Min 43.2 V
• Max52.8V
• Input/Load Variation 1 Max 384 mV
• Output ripple noise voltage 1 Max 200 mV
• Max output power Max 100.8 W
• Insulation voltage Eac (between input and output) Min 3kV
• Insulation voltage Eac (between input and FG) Min 2kV
• Insulation voltage Eac (between output and FG) Min 0.5 kV
• Insulation Resistance (Input-Output-FG) Min 100 MOhm
• Operating temperature range Min -10 Cel
• Max70Cel
• Body width (L) Nom 39 mm
• Body Height (W) Nom 108 mm
• Body Height (T) Nom 94 mm
• Weight Nom 400 g
• RoHS compliant
