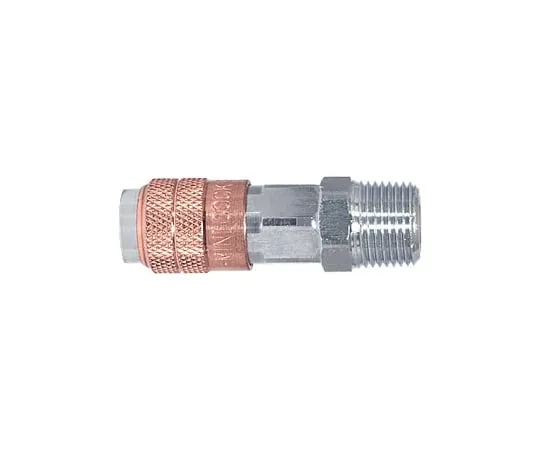

65-9009-41 Mini Cock Rc3/8 Socket CC33SMBRASSNBR
Product Description
Product Model: 65-9009-41Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9009-41
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Compact, lightweight and one-touch connection with emphasis on workability.
- Piping connection for fusing work can be made from the container to the blowpipe.
- The body is chrome plated and has excellent corrosion resistance. In addition, the plug is heat-treated to improve durability.
- In order to prevent misconnection, the fitting size is changed for oxygen and fuel gas, and the sleeve for fuel gas is colored with copper plating to ensure safety.
- Standardized mounting shapes for a wide range of fusing applications.
Spec
- Mating Side Mounting Screw Size: Rc3/8
- Mass (g): 65
- L(mm):57
- ΦD(mm):18.5
- H (mm): Hex 17
- T:R3/8
- ΦB(mm):5
- Valve Structure: One Way Opening/Closing Type
- Applicable fluids: oxygen, fuel gas
- Body Material: Brass (Chrome Plated)
- Maximum Working Pressure (MPa{kgf/cm2}): 0.7{7}
- Pressure Capacity (MPa{kgf/cm2}): 1.0{10}
- Recomm***ed maximum tightening torque (N · m{kgf · cm}): 11{112}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +80
- Remarks: Standard Material
- Mounting Shape: Male Screw
- Type: Socket
