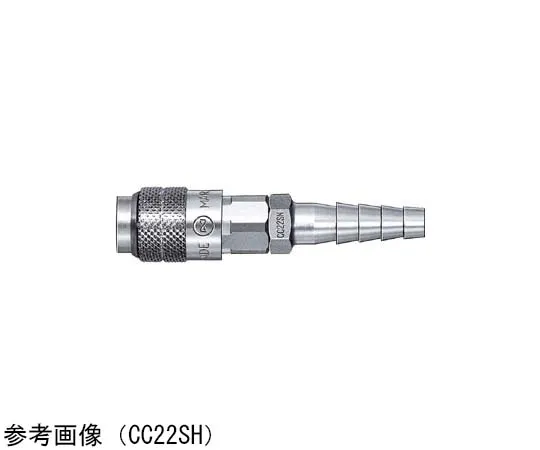

65-9008-89 Mini Cock 1/4/5/16 Hose Nipple Socket CC22SHBRASSNBR
Product Description
Product Model: 65-9008-89Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9008-89
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Compact, lightweight and one-touch connection with emphasis on workability.
- Piping connection for fusing work can be made from the container to the blowpipe.
- The body is chrome plated and has excellent corrosion resistance. In addition, the plug is heat-treated to improve durability.
- In order to prevent misconnection, the fitting size is changed for oxygen and fuel gas, and the oxygen sleeve is colored with chromium plating in pursuit of safety.
- Standardized mounting shapes for a wide range of fusing applications.
Spec
- Opposing Hose Size: 1/4/5/16
- Mass (g): 44
- L(mm):69.6
- ΦD(mm):17
- A(mm):30
- ΦJ(mm):9.5
- ΦB(mm):5
- Valve Structure: One Way Opening/Closing Type
- Applicable fluids: oxygen, fuel gas
- Body Material: Brass (Chrome Plated)
- Maximum Working Pressure (MPa{kgf/cm2}): 0.7{7}
- Pressure Capacity (MPa{kgf/cm2}): 1.0{10}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +80
- Remarks: Standard Material
- Mounting Shape: Hose Nipple
- Type: Socket
